JL071-61101 HP 3810M 24G 1-slot Switch
JL071-61101 Overview

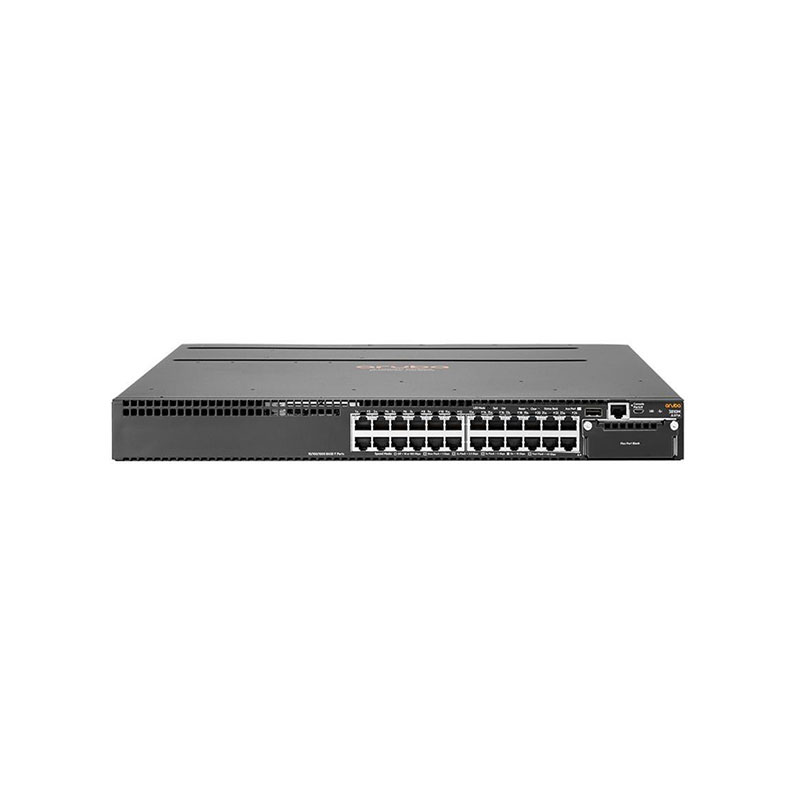

The HP JL071-61101 3810M 24G is a Layer 3 fully managed switch featuring 24 Gigabit RJ-45 ports in a 1-slot modular chassis. It is designed for enterprise edge, branch offices, and campus deployments, offering scalable, reliable, and high-performance networking in a compact form factor.The switch supports advanced Layer 2 and Layer 3 features, including VLANs, link aggregation, static and dynamic routing, QoS, and security protocols such as ACLs, RADIUS, and TACACS+, ensuring efficient traffic management, network segmentation, and secure operations.With a rack-mountable design, optional redundancy, and energy-efficient operation, the provides reliable and flexible connectivity for enterprise networks.
JL071-61101 Technical Specifications
HP 3810M 24G 1-slot Switch
Manufacturer Part Number: JL071-61101
Brand Name: HP
Product Line: HP 3810M Series
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 24
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
Uplink/Expansion Ports: 1 Slot (supports optional module)
Layer Support: Layer 2 / Layer 3
Switching Capacity: 128 Gbps
Forwarding Rate: 95 Mpps
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4 / IPv6 Supported
Dynamic Routing: RIP, OSPF Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
