JL253A Technical Specifications

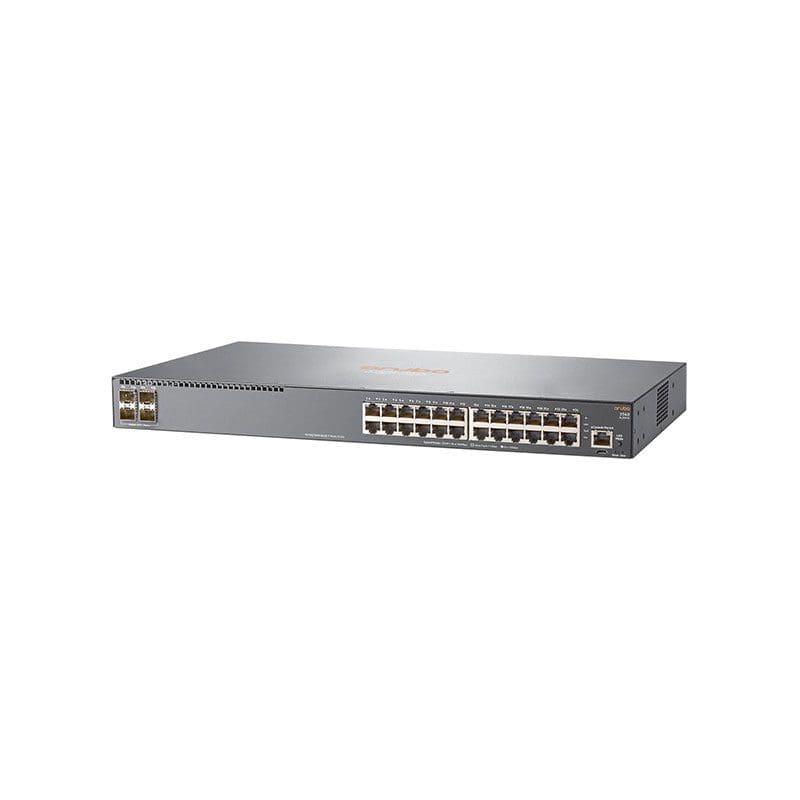

HP Aruba 2930f 24g 4sfp+ Switch 24 Ports Managed Rack-Mountable
GENERAL INFORMATION :
Device Type :HP Aruba – Switch – 24 Ports Network Switch – L3 – Managed – Stackable
Enclosure Type : Rack-Mountable – 1u Aruba 2930f
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 + 4 X 1 Gigabit / 4 Sfp+ Port (Uplink)
Performance : Throughput : 95.2 Mpps ¦ Switching Capacity : 128 Gbps ¦ Latency (1 Gbps) : 3.8 µs ¦ Latency (10 Gbps) : 1.6 µs
Capacity : Jumbo Frame Size : 9220 ¦ Ipv4 Routing Table Entries : 10000 ¦ Ipv6 Routing Table Entries : 5000
Mac Address Table Size : 32k Entries
Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Bgp, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Ssh, Ssh-2, Cli, Xrmon
Encryption Algorithm : Md5, Ssl
Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+
Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (Lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax
Processor : 1 X Arm Cortex-A9 : 1.016 Ghz
Ram : 1 Gb – Ddr3 Sdram
Flash Memory : 4 Gb
EXPANSION / CONNECTIVITY :
Interfaces : 24 X 1000base-T – Rj-45 ¦ 4 X Gigabit / 10gbit Lan – Sfp+ ¦ 1 X Serial (Console)
Expansion Slots : 1 (Total) / 1 (Free) X Expansion Slot
Installed Modules Qty (Max) : 0 (Installed) / 4 (Max)
POWER :
Power Device : Internal Power Supply
Installed Qty : 1
Voltage Required : Ac 120/230 V
Power Consumption Operational : 29.3 Watt
