JL676A Technical Specifications

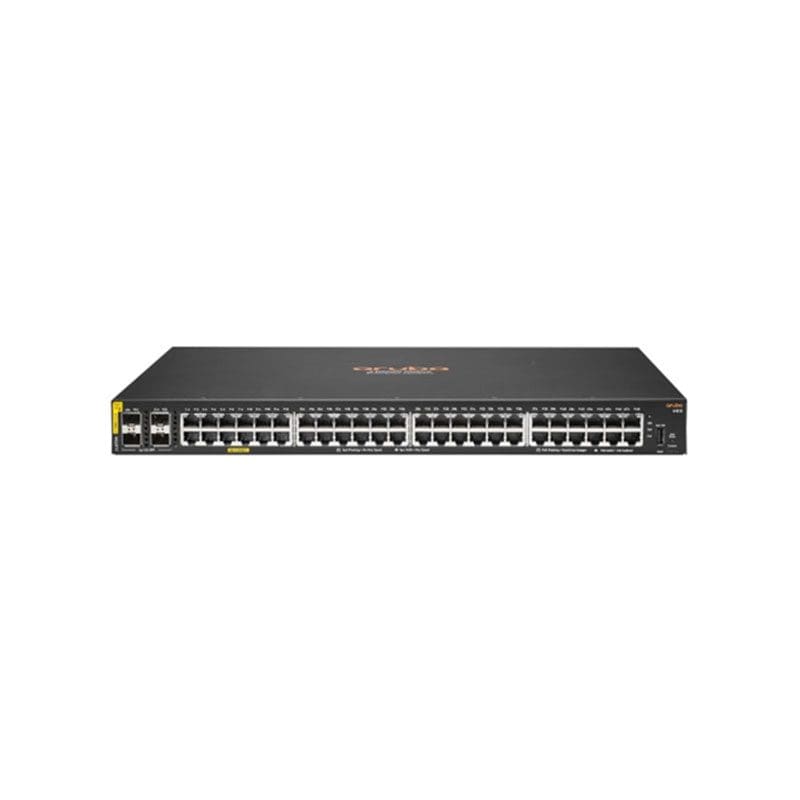

Aruba 6100 48G 4SFP+ Switch – 48 Ports – 3 Layer Supported – Modular – 44.20 W Power Consumption – Twisted Pair, Optical Fiber – 1U High – Rack-mountable, Wall Mountable – Lifetime Limited
Device Type : Switch – 52 Ports – Managed – Stackable
Enclosure Type : Side To Side Airflow Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 48 X 10/100/1000 + 4 X 1 Gigabit / 10 Gigabit Sfp+
Performance : Switching Capacity: 176 Gbps ¦ Throughput: 98.6 Mpps ¦ Latency (1 Gbps): 1.9 Μs ¦ Latency (10 Gbps): 1.8 Μs
Capacity : Switched Virtual Interfaces (svis): 16 ¦ Arp Entries: 1024 ¦ Ipv4 Routes (unicast): 512 ¦ Ipv6 Routes (unicast): 512 ¦ Igmp Groups: 512 ¦ Mld Groups: 512 ¦ Ipv4 Acl Entries (ingress): 256 ¦ Ipv6 Acl Entries (ingress): 128 ¦ Mac Acl Entries (ingress): 256
Mac Address Table Size : 8192 Entries
Routing Protocol : Igmpv2, Igmpv3
Encryption Algorithm: Ssl
Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
Processor : 1 X Arm A9: 1.016 Ghz
Ram : 4 Gb Ddr3 Sdram
Flash Memory : 16 Gb
Expansion / Connectivity :
Interfaces :
48 X 10/100/1000 Base-t Rj-45
4 X 1/10gbit Lan Sfp+
1 X Usb-c Console
1 X Usb Type A
Power
Power Device : Internal Power Supply
Power Provided : 65 Watt 0.5 A
Voltage Required : Ac 230 V (50/60 Hz)
Power Consumption Operational : 20.6 Watt
