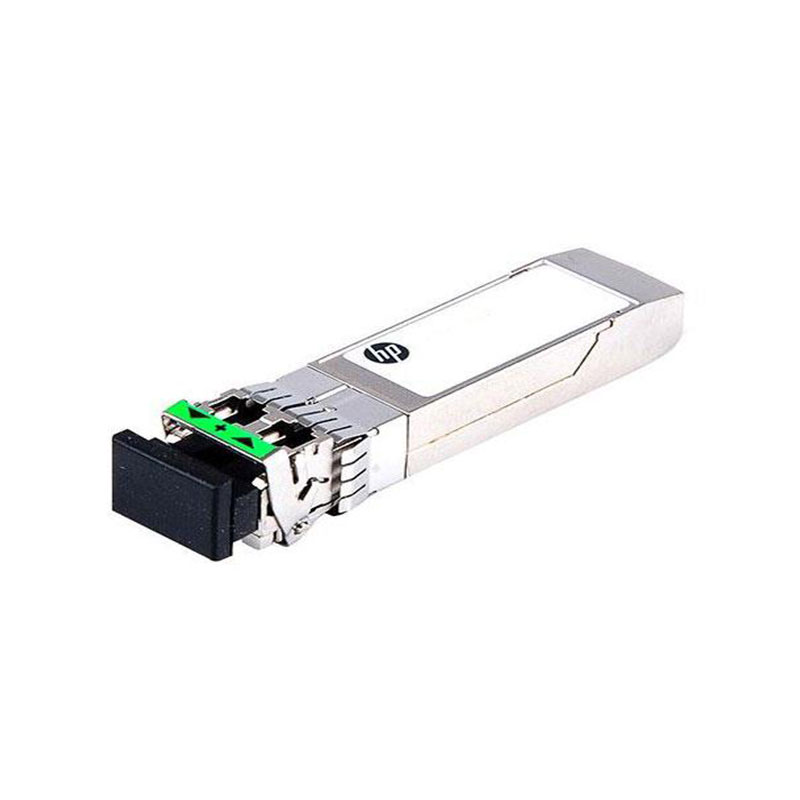

JL780-61001 HP 1Gb/s SFP 500m 850nm LC Multi-Mode Fiber Transceiver
JL780-61001 Overview
The HP JL780-61001 is a 1Gbps SFP optical transceiver designed for short-range Ethernet connectivity over multi-mode fiber (MMF). Supporting link distances of up to 500 meters, it operates at an 850nm wavelength and utilizes a duplex LC connector to provide low-loss, reliable optical connections.This transceiver is hot-swappable, allowing network administrators to install or replace it without interrupting network operations. It is fully compliant with IEEE 802.3z 1000Base-SX standards and the SFP Multi-Source Agreement (MSA), ensuring compatibility and seamless interoperability with HP networking switches and other MSA-compliant devices.
JL780-61001 Technical Specifications
HP 1Gb/s SFP 500m 850nm LC Multi-Mode Fiber Transceiver
Manufacturer Part Number: JL780-61001
Brand Name: HP
Product Type: SFP Transceiver Module
Data Rate: 1Gbps
Transceiver Type: 1000Base-SX (Short Range)
Media Type Supported: Multi-Mode Fiber (MMF)
Wavelength: 850nm
Connector Type: LC Duplex
Maximum Reach: Up to 500m on OM3 / 550m on OM4 MMF
Form Factor: SFP
Hot Swappable: Yes
Digital Diagnostics Monitoring (DOM): Not Supported
Fiber Strand Count: 2 (duplex)
Compatibility: HP switches and networking equipment
Application: Enterprise LAN, data center connectivity
Standards Compliance: IEEE 802.3z 1000Base-SX, SFP MSA
Backward Compatibility: Supports 100Mbps operation (auto-negotiation)
Power Consumption: Low power
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Reliability: Carrier-grade, continuous operation
