JL806A#ABA Technical Specifications

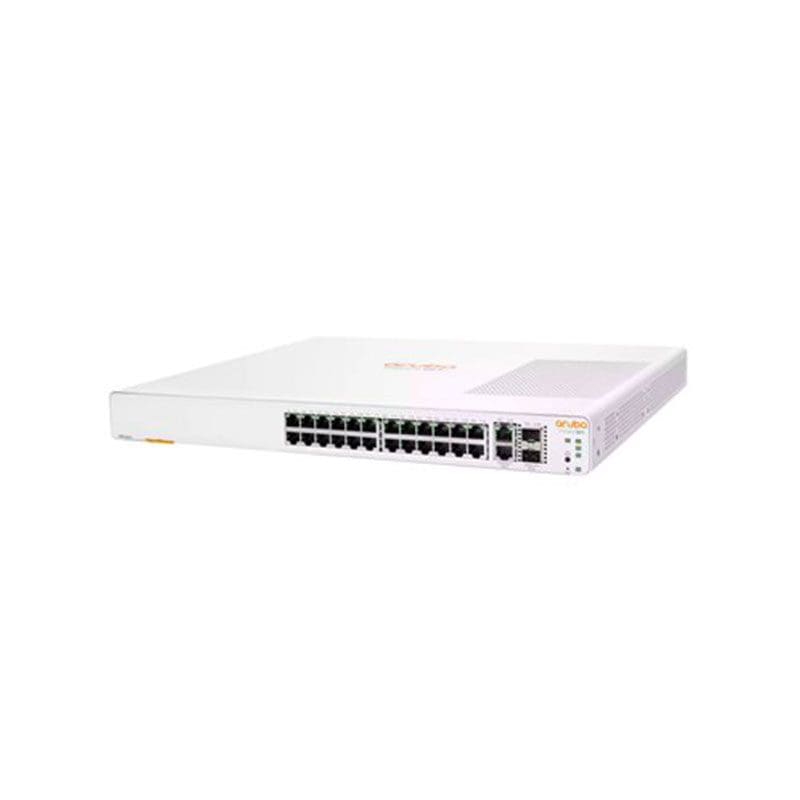

HPE Aruba Instant On 1960 24G 2XGT 2SFP+ Switch
Brand: Aruba
Product Line: HPE Aruba Instant On
Model: 1960 24G 2XGT 2SFP+ Switch
Manufacturer: Aruba Instant On
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9216 bytes
MAC Address Table Size: 16000 entries
Manageable: Yes
Ports: 24
Product Type: Switch
Remote Management: HTTP, HTTPS, RADIUS, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: Static IP routing
Status Indicators: Port status, Power
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Latency (1 Gbps): 2.2 µs, Latency (10 Gbps): 1.1 µs, Latency (100 Mbps): 4.4 µs, Switching capacity: 128 Gbps, Throughput: 95 Mpps
Ports (2nd) Quantity: 2
Ports (3rd) Quantity: 2
Clock Speed: 800 megahertz
Processor Brand: ARM
Processors Installed: 1
Height: 1.7 inch
Height (Rack Units): 1
Weight: 8.6 lbs
Width: 17.4 inch
Depth: 13.8 inch
