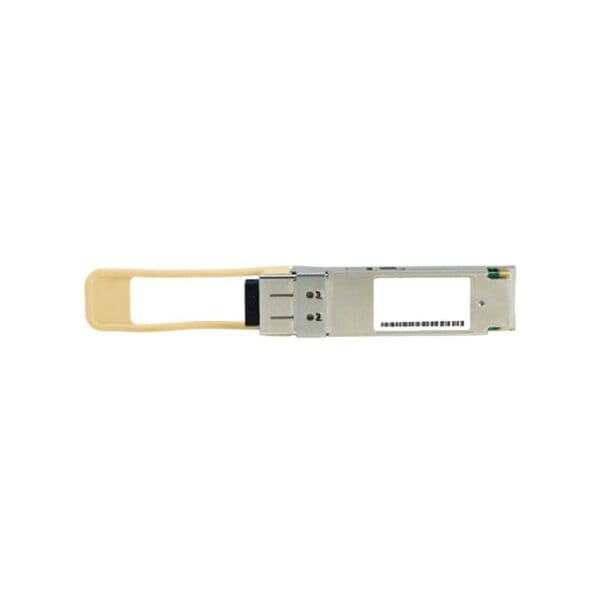

JNP-QSFP-100G-BXSR Juniper Networks Transceiver

JNP-QSFP-100G-BXSR Technical Specifications

Juniper Networks QSFP28 Transceiver module 100 Gigabit Ethernet

Header
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Packaged Quantity :1
Networking
Type :QSFP28 transceiver module
Form Factor :Plug-in module
Connectivity Technology :Wired
Cabling Type :Ethernet 100GBase-BXSR
Data Link Protocol :100 Gigabit Ethernet
Data Transfer Rate :100 GBps
Optical Wave Length :850 nm
Max Transfer Distance :328 ft
Features :Bidirectional, Digital Optical Monitoring (DOM) support
Connectors (for SD)
Left Connector Type :2 x LC multi-mode
Right Connector Type :QSFP28
Interface Provided
Interfaces :1 x Ethernet 100GBase-BXSR – LC multi-mode female x 2
Power Device
Power Consumption Operational :3.5 watt
Miscellaneous
Compliant Standards :MSA SFF-8636, MSA SFF-8665, NEBS, OM3, OM4
Dimensions & Weight
Width :0.7 inch
Depth :2.9 inch
Height :0.5 inch
Weight :3.53 ounce
