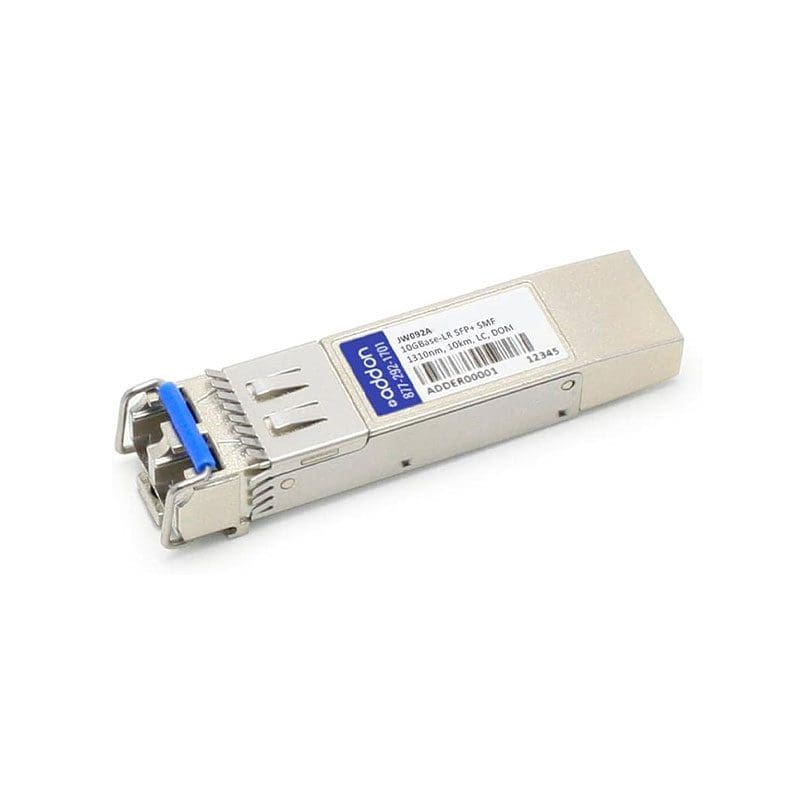

JW092A HPE Aruba Sfp+ Transceiver Module 10 Gigabit Ethernet

JW092A Technical Specifications

HPE Aruba Sfp+ Transceiver Module 10 Gigabit Ethernet

Product Manufacturer name: HPE
Product Brand Name: HPE
Media Type: Single-Mode Fiber (SMF)
TX Wavelength: 1310 nm
RX Wavelength: 1310 nm.
Minimum Optical Budget: 6 dB
Maximum Distance: 10km
Supported Data Rate: 1.25-10.31 Gbps
Supported Applications: 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps)
DDM/DOM: Support
Temperature Range: Standard 0°-70°C
Connectors: Double LC
Tx Wavelength Bandwidth: 100 nm (1260-1360 nm)
Rx Wavelength Bandwidth: 100 nm (1260-1360 nm)
Minimum Transmitting Power: -8 dB
Maximum Transmitting Power: -0.5 dB
Receiver Sensitivity: -14 dBm
Receiver Overload: 0.5 dBm
Dispersion: 70-100 ps/nm
Transmitter Type: DFB Laser
Receiver Type: PIN photodiode
Power: +3.3V single power supply
Product Shipping Dimension(HxWxD): 1.2 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB): 0.4
Chipset: MAXIM, MINDSPEED, SEMTECH
Compliance: CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA
Transceiver Type: SFP
