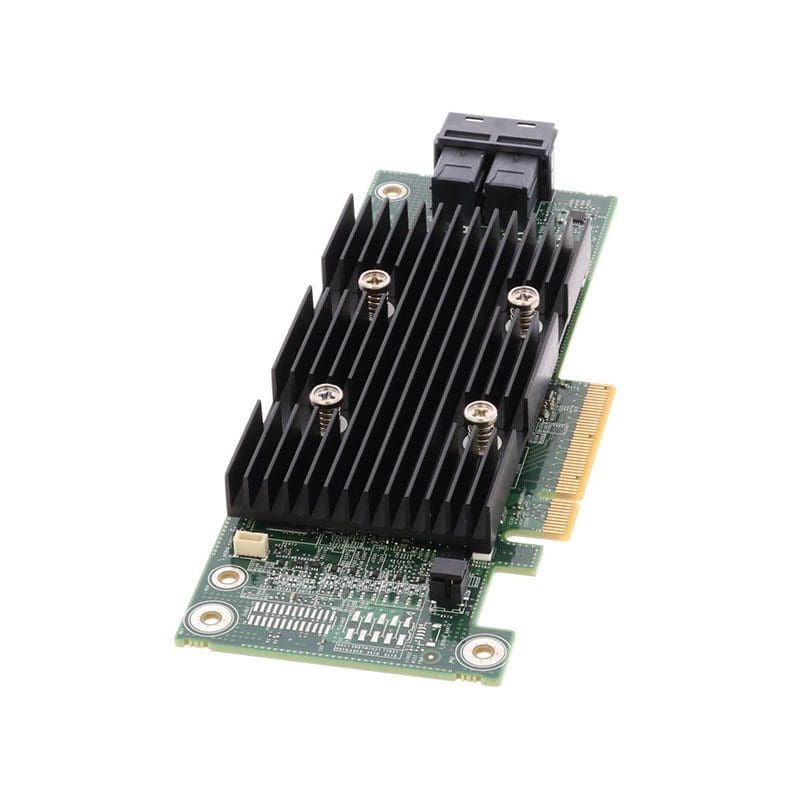

JXW07 DELL Perc H330 12gb/s Pci-express 3.0 Sas Raid Controller Card

JXW07 Technical Specifications

DELL Perc H330 12gb/s Pci-express 3.0 Sas Raid Controller Card Only

Part Number : Jxw07
Manufacturer : Dell
Technical Specifications:
Device Type : Storage Controller (raid) – Plug-in Card – Low Profile
Bus Type : Pcie 3.0 X8
Interface : Sata 6gb/s / Sas 12gb/s
Data Transfer Rate : 1.2 Gbps
Supported Devices : Hard Drive, Disk Array (raid), Solid State Drive
Channel Qty : 8
Max Storage Devices Qty : 128
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Designed For : Poweredge C4130, R230, R630, R930, T130, T330, T430, T630
