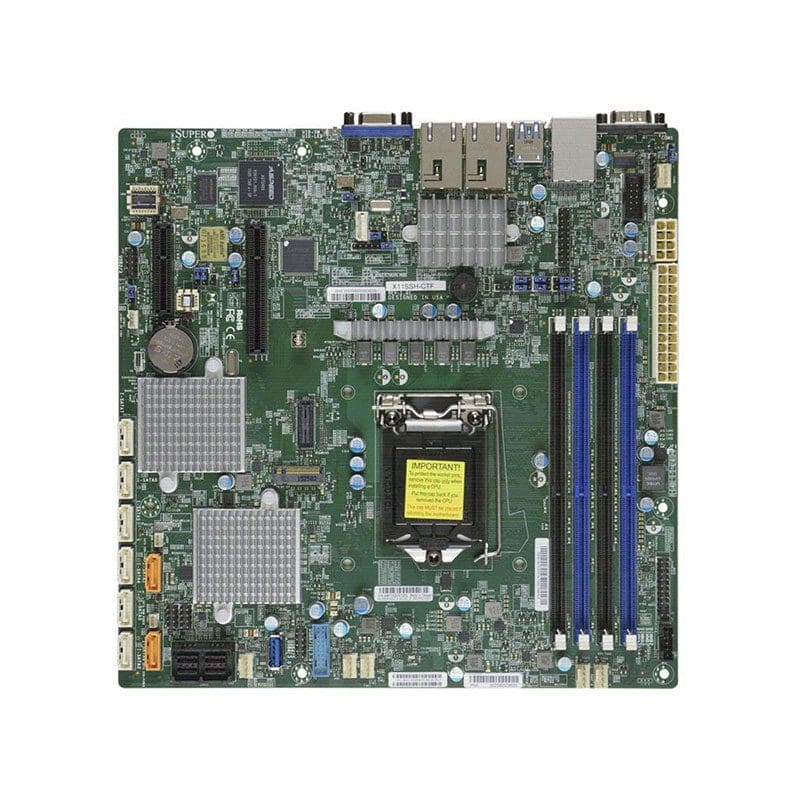

MBD-X11SSH-CTF-O SuperMicro X11SSH-CTF Server Motherboard

MBD-X11SSH-CTF-O Technical Specifications

SuperMicro X11SSH-CTF Socket H4 LGA 1151 Xeon E3-1200 v5 / v6 Intel C236 Chipset DDR4 4 x DIMM 8 x SATA 6Gbps 8 x SAS 12Gbps micro-ATX Server Motherboard

Manufacturer Part Number MBD-X11SSH-CTF-O
Brand Name Supermicro
Product Type Server Motherboard
Processor & Chipset
Chipset Manufacturer Intel
Total Processor Supported 1
Processor Socket Socket H4 LGA-1151
Processor Supported Core i3
Celeron
Pentium
Xeon
Memory
Number of Memory Slots 4
Memory Form Factor DIMM
UDIMM
Maximum Memory 64 GB
Memory Speed Supported 2.13 GHz
1.87 GHz
1.60 GHz
Memory Technology DDR4 SDRAM
I/O Controller
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 0
1
5
10
Video
Onboard Video On-board Video Chipset
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2400
Network & Communication
Gigabit Ethernet Yes
I/O Expansions
Number of Total Expansion Slots 3
Total Number of PCI Express Slots 3
Number of PCI Express x4 Slots 2
Number of PCI Express x8 Slots 1
Interfaces/Ports
Total Number of USB Ports 4
Number of USB 3.0 Ports 2
VGA Yes
Onboard Interfaces
Number of SATA Interfaces 8
Number of SAS Interfaces 8
Total Number of Onboard USB Ports 7
Number of Onboard USB 3.0 Ports 3
Physical Characteristics
Form Factor Micro ATX
Width 9.6″
Depth 9.6″
