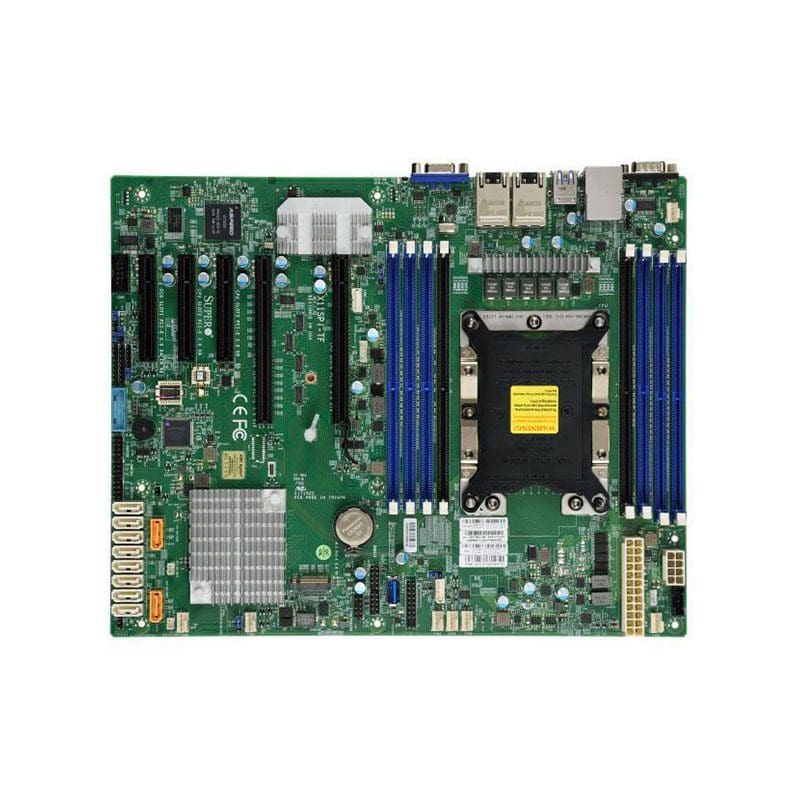

MBD-X11SPI-TF-O SuperMicro X11SPI-TF Socket Server Motherboard

MBD-X11SPI-TF-O Technical Specifications

SuperMicro X11SPI-TF Socket LGA 3647 Intel C622 Chipset Xeon Scalable Processors Support DDR4 8x DIMM 10x SATA 6.0Gb/s ATX Server Motherboard

Manufacturer Part Number MBD-X11SPI-TF-O
Brand Name Supermicro
Product Type Server Motherboard
Processor & Chipset
Chipset Manufacturer Intel
Total Processor Supported 1
Processor Socket Socket P LGA-3647
Processor Supported Xeon
Memory
Number of Memory Slots 8
Memory Form Factor RDIMM
DIMM
LRDIMM
Maximum Memory 1 TB
Memory Speed Supported 2.67 GHz
2.40 GHz
2.13 GHz
1.87 GHz
1.60 GHz
Memory Technology DDR4 SDRAM
I/O Controller
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 10
5
1
0
Video
Onboard Video On-board Video Chipset
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2500
Audio
Audio Channels 7.1
Network & Communication
10Gigabit Ethernet Yes
I/O Expansions
Number of Total Expansion Slots 5
Total Number of PCI Express Slots 5
Number of PCI Express x4 Slots 1
Number of PCI Express x8 Slots 2
Number of PCI Express x16 Slots 2
Interfaces/Ports
Total Number of USB Ports 4
Number of USB 3.0 Ports 2
VGA Yes
Onboard Interfaces
Number of SATA Interfaces 10
Number of M.2 Interfaces 1
Total Number of Onboard USB Ports 7
Number of Onboard USB 3.0 Ports 3
Physical Characteristics
Form Factor ATX
Width 12″
Depth 9.6″
