MBDX10SRLFO Technical Specifications

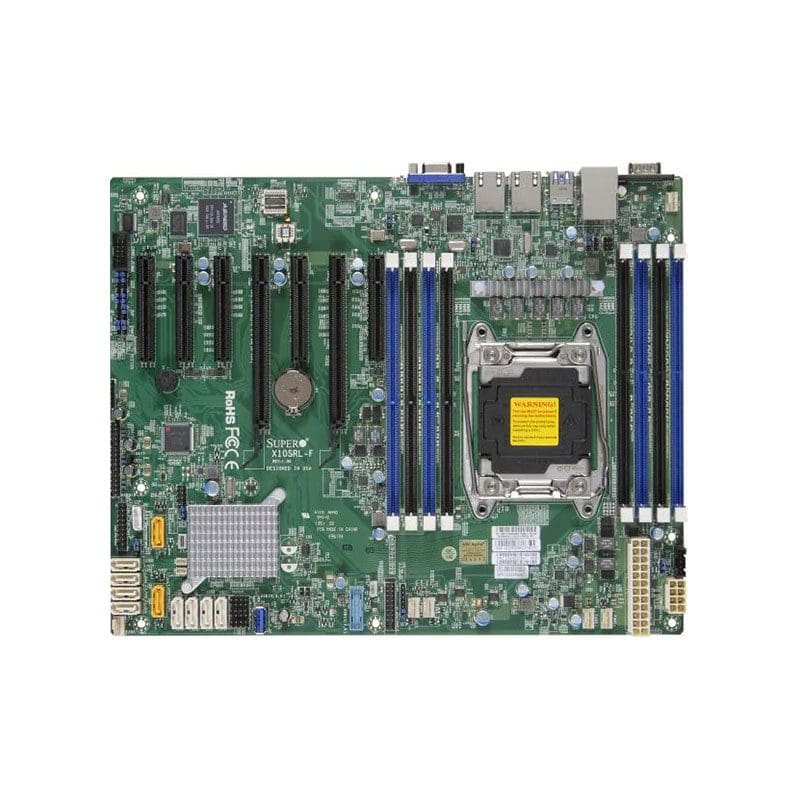

SuperMicro X10SRL-F Socket LGA 2011 Intel C612 Chipset Intel Xeon E5-2600 v4/v3 & E5-2600 v4/v3 Processors Support DDR4 8x DIMM 10x SATA3 6.0Gb/s ATX Server Motherboard
Model
Manufacturer SuperMicro
Manufacturer Part # MBDX10SRLFO
Performance
Product Type Server Motherboard
Form Factor ATX
CPU Socket Type LGA 2011
Supported CPU(s) Intel Xeon Processor
Chipset Intel C612
Number of Memory Slot(s) 8
Supported Memory Standard(s) PC4-12800 (DDR4-1600)
PC4-14900 (DDR4-1866)
PC4-17000 (DDR4-2133)
PC4-19200 (DDR4-2400)
Maximum Installed Memory 256 GB
Expansion Slots PCI-E 2.0 x4
PCI-E 3.0 x4
PCI-E 3.0 x8
Storage Controller SATA 6.0 Gbps
On-Board Video Controller ASPEED AST2400
Network Gigabit Ethernet
Connectors/Ports RJ-45
Serial
USB 2.0
USB 3.0
VGA
