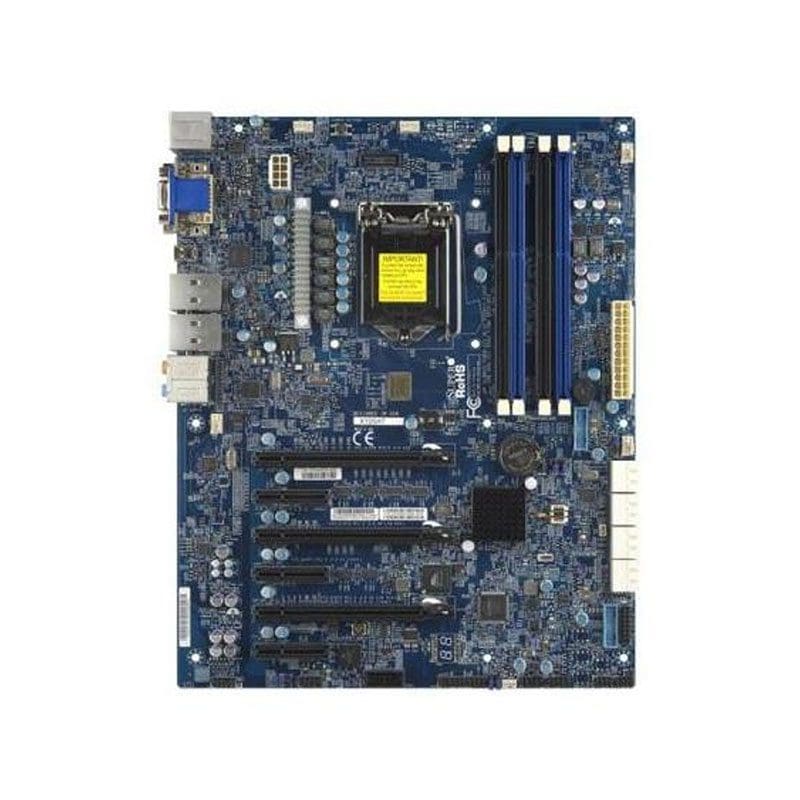

MBDX10SATO SuperMicro X10SAT Socket LGA 1150

MBDX10SATO Technical Specifications

SuperMicro X10SAT Socket LGA 1150 Intel C226 Chipset Intel Xeon E3-1200 v3/v4 4th/5th Generation Core i7 / i5 / i3 Processors Support DDR3 4x DIMM 6x SATA3 6.0Gb/s ATX Server Motherboard

Model
Manufacturer SuperMicro
Manufacturer Part # MBDX10SATO
Performance
Product Type Server Motherboard
Form Factor ATX
CPU Socket Type LGA 1150
Supported CPU(s) Intel Core i3 Processor
Intel Core i5 Processor
Intel Core i7 Processor
Intel Xeon Processor
Chipset Intel C226
Number of Memory Slot(s) 4
Supported Memory Standard(s) PC3-12800 (DDR3-1600)
Maximum Installed Memory 32 GB
Expansion Slots PCI-E 2.0 x1
PCI-E 3.0 x16
Storage Controller SATA 6.0 Gbps
Audio Controller Realtek ALC1150
Network Gigabit Ethernet
Connectors/Ports COM
RJ-45
Serial
TPM Header
USB 2.0
USB 3.0
VGA
