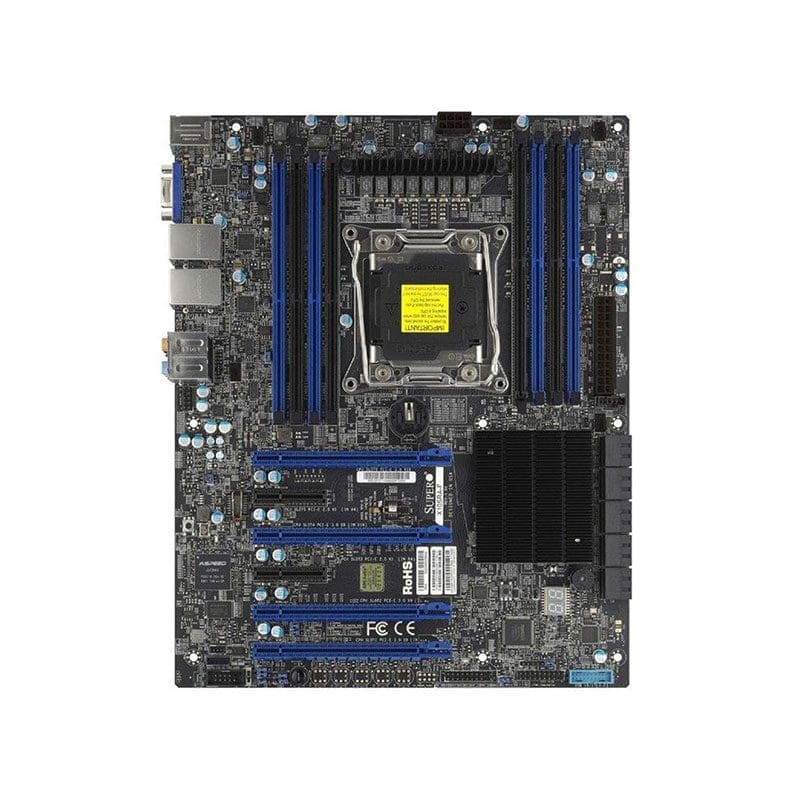

MBDX10SRAFO SuperMicro X10SRA-F Socket R3 LGA 2011

MBDX10SRAFO Technical Specifications

SuperMicro X10SRA-F Socket R3 LGA 2011 Xeon E5-1600 / E5-2600 v4 / v3 Intel C612 Chipset DDR4 8 x DIMM 10 x SATA 6Gbps ATX Server Motherboard

Model
Manufacturer SuperMicro
Manufacturer Part # MBDX10SRAFO
Performance
Product Type Server System Board
Form Factor ATX
CPU Socket Type LGA 2011-3
Supported CPU(s) Intel Core i7 Processor
Intel Xeon Processor
Supported CPU Technologies 64-bit
Hyper-Threading Technology
Intel 64 Architecture
Chipset Intel C612
Number of Memory Slot(s) 8
Supported Memory Standard(s) DDR4 1866
DDR4 2133
PC4-12800 (DDR4-1600)
Maximum Installed Memory 512 MB
Expansion Slots PCI Express x16
PCI Express x8
Storage Controller Serial-ATA 6.0 Gbps
Audio Controller Realtek ALC1150
Network Gigabit Ethernet
Connectors/Ports Audio-In
Audio-Out
Microphone
PS/2 Keyboard
PS/2 Mouse
RJ-45 (Ethernet)
USB 3.0
USB 3.1
Other Information
Features
Chassis intrusion detection
Chassis intrusion header
Chipkill support
RoHS
