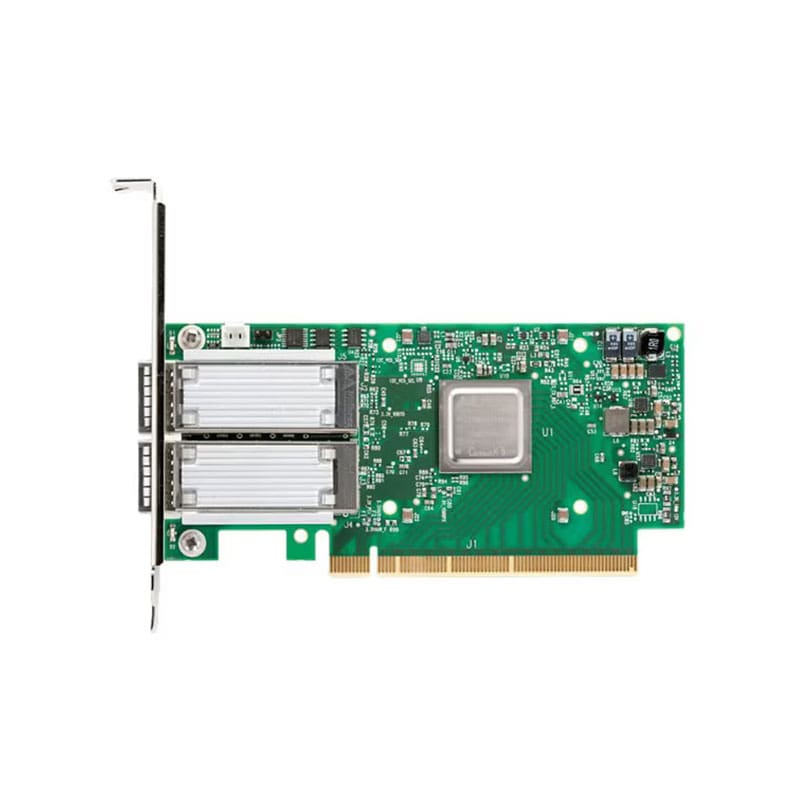

MCX516A-CCAT Technical Specifications
NVIDIA ConnectX-5 EN Network Adapter PCIe 3.0 x16 100 Gigabit QSFP28 x 2
Brand: NVIDIA
Product Line: NVIDIA ConnectX-5 EN
Manufacturer: Nvidia Corp
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, Gigabit Ethernet
Data Transfer Rate: 100 GBps
Form Factor: Plug-in card
Host Interface: PCI Express 3.0 x16
Network Standard: iSCSI, TCP/IP, UDP/IP
PCI Specification Revision: PCIe 3.0
Product Type: Network adapter
Connectivity
Interface Provided: 2 x 100Gb Ethernet – QSFP28
Port Quantity: 2
Network & Adapter Ports: 100 Gigabit QSFP28pci
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 2.7 inch
Depth: 5.6 inch
Physical Characteristics
Color Category: Green, Silver
Certifications & Listings
Compliant Standards: RoHS 6/6
