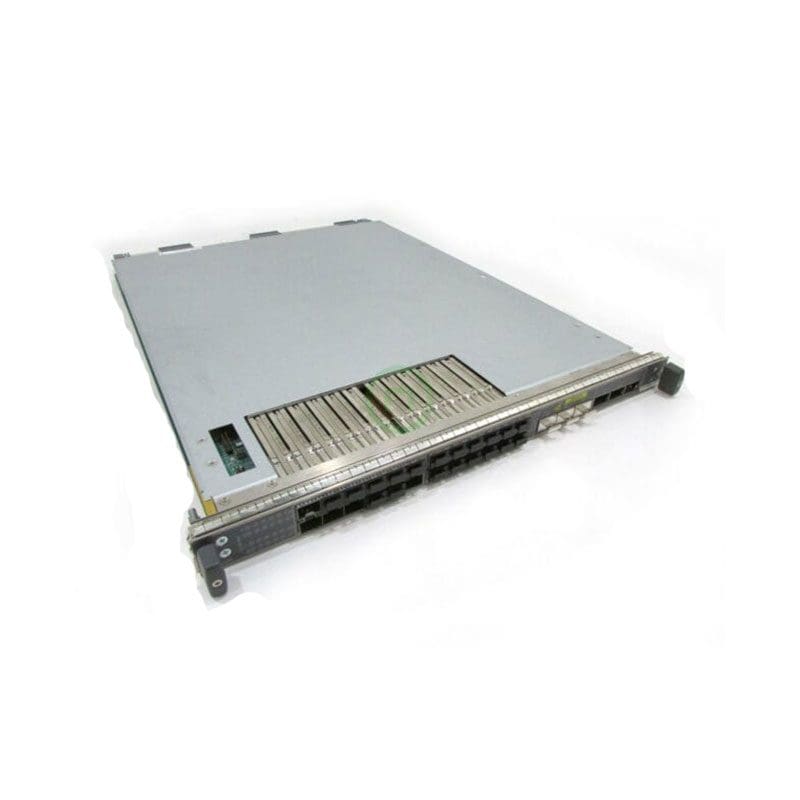

MPC5E-40G10G Juniper Networks expansion module
MPC5E-40G10G Overview
Fixed-port MPC with six 40-Gigabit Ethernet ports and twenty-four 10-Gigabit Ethernet ports
Line-rate throughput of up to 240Gbps
Supports up to 32,000 queues per-slot
LAN-PHY mode at 10.3125Gbps on a per-port basis
Supports maximum transmission unit (MTU) size of 9,192 bytes for host bound packets. For Junos OS 16.1R1 and later releases, the MTU size supported is 9,500 bytes.
$237,928
MPC5E-40G10G Technical Specifications
Juniper Networks expansion module
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :MPC5E-40G10G
Packaged Quantity :1
Performance
Performance :Throughput: 240 Gbps
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :MLPPP
Network / Transport Protocol :L2TP
Remote Management Protocol :CLI
Status Indicators :Fail, Link OK
Features :Layer 2.5 switching, Link Aggregation Control Protocol (LACP), Timing support, GRE tunneling, Weighted Random Early Detection (WRED), Strict Priority Queuing (SPQ), Class of Service (CoS), NAT support, Virtual Route Redundancy Protocol (VRRP) support, Tunneling, Weighted Round Robin (WRR) queuing, Quality of Service (QoS), Load balancing, Layer 3 switching, VLAN support, Layer 2 switching
Compliant Standards :IEEE 802.1Q
