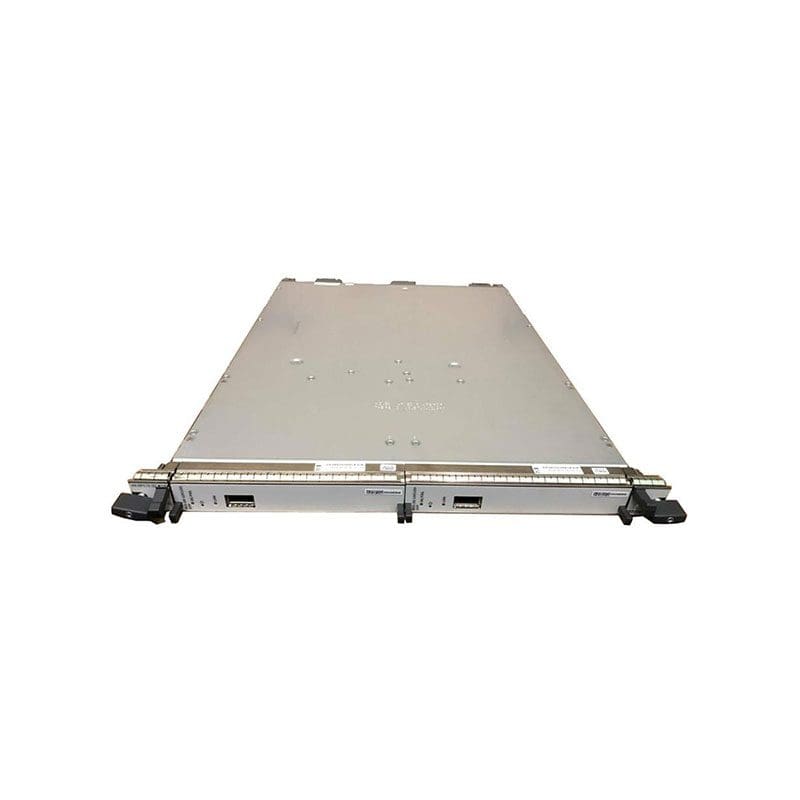

MX-MPC1E-3D Juniper Networks MX Series expansion module
MX-MPC1E-3D Overview
Modular Port Concentrators (MPCs) provide packet forwarding services. The MPCs are inserted into a slot in a router. Modular Interface Cards (MICs) provide the physical interfaces and install into the MPCs. You can install up to two MICs of different media types on the same MPC as long as the MPC supports those MICs.
$35,699
MX-MPC1E-3D Technical Specifications
Juniper Networks MX Series Enhanced Modular Port Concentrator expansion module
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX Series
Model :Enhanced Modular Port Concentrator
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Features :MAC address filtering, Bidirectional Forwarding Detection (BFD), GRE tunneling, IPv4 support, Weighted Random Early Detection (WRED), Firewall protection, Weighted Round Robin (WRR) queuing, Virtual Route Redundancy Protocol (VRRP) support, IPv6 support, Spanning Tree Protocol (STP) support, MPLS VPN, Quality of Service (QoS), MPLS support
Compliant Standards :IEEE 802.3ad (LACP), IEEE 802.1Q
Slot Required: Yes
Compatible Slots :1 x expansion slot
