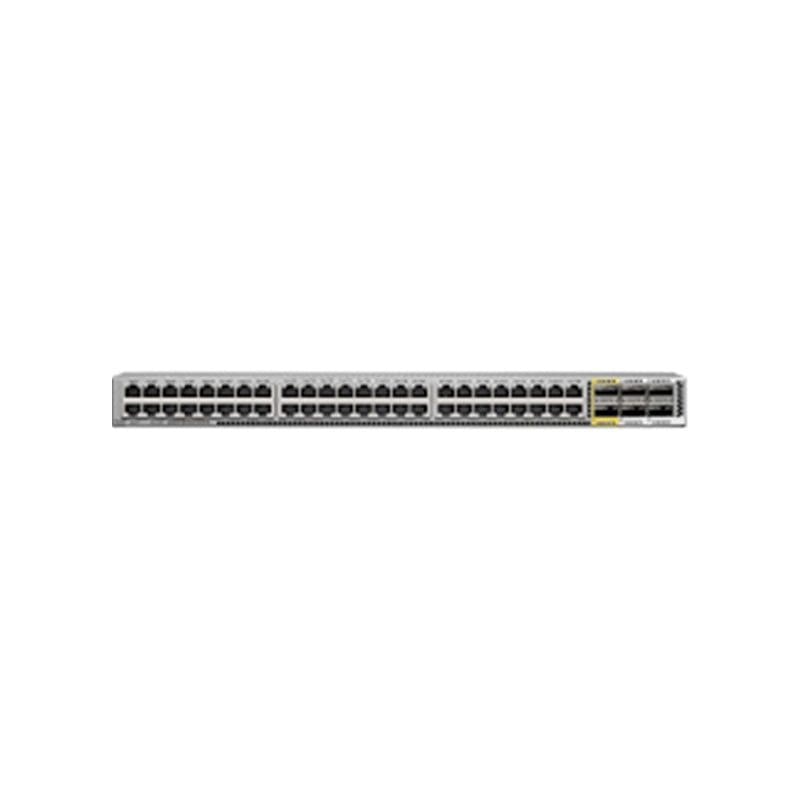

N2K-C2348TQ, Cisco Nexus 2348TQ 10GE Fabric Extender
N2K-C2348TQ Overview
N2K-C2348TQ is a Cisco Nexus 2300 Platform Chassis, offering 10G BASE T Fabric Extender, 2 power supplier, 3 Fan Modules, 48x100M/1/10GT (RJ45) + 6x40G QSFP+(req QSFP+) and choice of airflow. Cisco Nexus 2300 platform fabric extenders are the successors to the industry’s widely adopted Cisco Nexus 2000 Series Fabric Extenders. The Nexus 2300 platform with its Cisco fabric extender architecture provides a highly scalable unified server-access platform across a range of connectivity options such as 100 Megabit Ethernet; 1, 10, and 40 Gigabit Ethernet; unified fabric; copper and fiber connectivity; and rack and blade server environments
$10,799
N2K-C2348TQ Technical Specifications
Cisco Nexus 2348TQ 10GE Fabric Extender Expansion Module – /FCoE/40 Gigabit LAN
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number N2K-C2348TQ
Brand Name Cisco
Device Type Expansion module
Form Factor Rack-mountable
Networking
Ports Gigabit Ethernet / 10Gb Ethernet x 48 + 40 Gigabit QSFP+ x 6
Connectivity Technology Wired
Data Link Protocol GigE, 10 GigE, FCoE, 40 Gigabit LAN
Performance Forwarding performance (full duplex): 480 Gbps ¦ Forwarding performance: 240 Gbps
Capacity Jumbo frame size: 9216 ¦ ACL entries: 256
Remote Management Protocol SNMP 1, SNMP 2, RMON, SNMP 3, CLI
Status Indicators Port status, power, system
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3an
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 – 95% (non-condensing)
Expansion / Connectivity
Interfaces 48 x 1Gb Ethernet/10Gb Ethernet – RJ-45 ¦ 6 x 40Gb Ethernet – QSFP+
Power
Power Device Plug-in module
