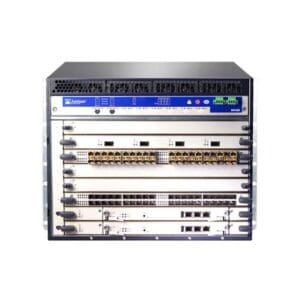

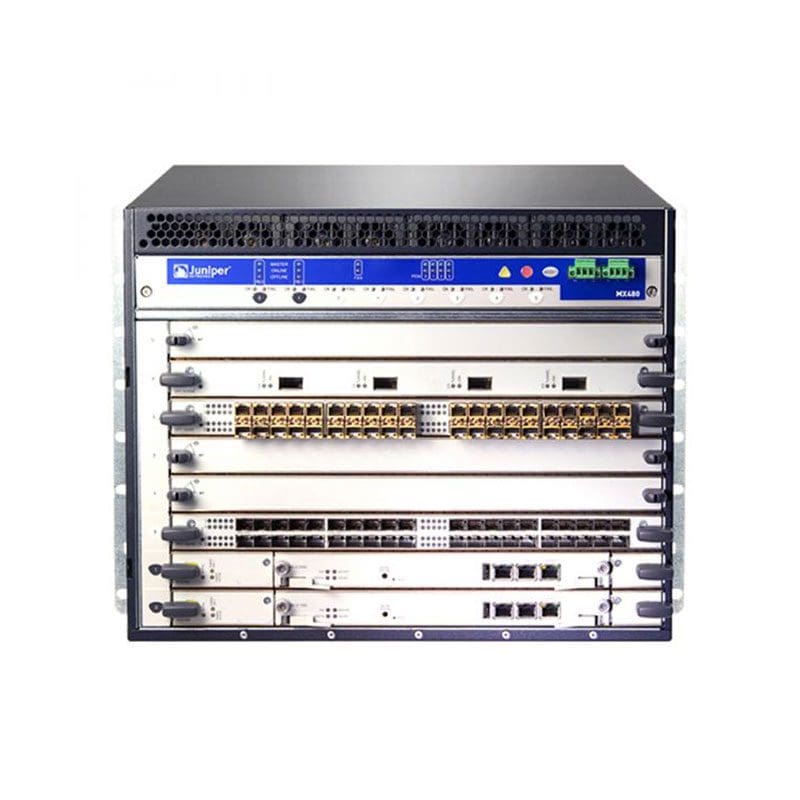

MX480BASE3-AC Juniper MX-series MX480 Router Rack Mountable

MX480BASE3-AC Technical Specifications

Juniper Networks MX-series MX480 Router Rack Mountable

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series
Model :MX480
Packaged Quantity :1
Chassis
Installed Devices / Modules Qty :0
Supported Devices / Modules Qty :8
Performance
Performance :Switching capacity: 2.72 Tbps, Per-slot switching capacity: 240 Gbps
Capacity
Capacity :Virtual interfaces (VLANs): 128000
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Frame Relay, TDM, ATM
Routing Protocol :GRE, MPLS, BGP
MAC Address Table Size :1M entries
Expansion Slots
Expansion Slots :8 (total) / 8 (free) x expansion slot
Power Device
Type :Internal power supply
Power Redundancy :Optional
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
System Requirements
OS Required :JUNOS
Dimensions & Weight
Width :17.5 inch
Depth :23.8 inch
Height :14 inch
