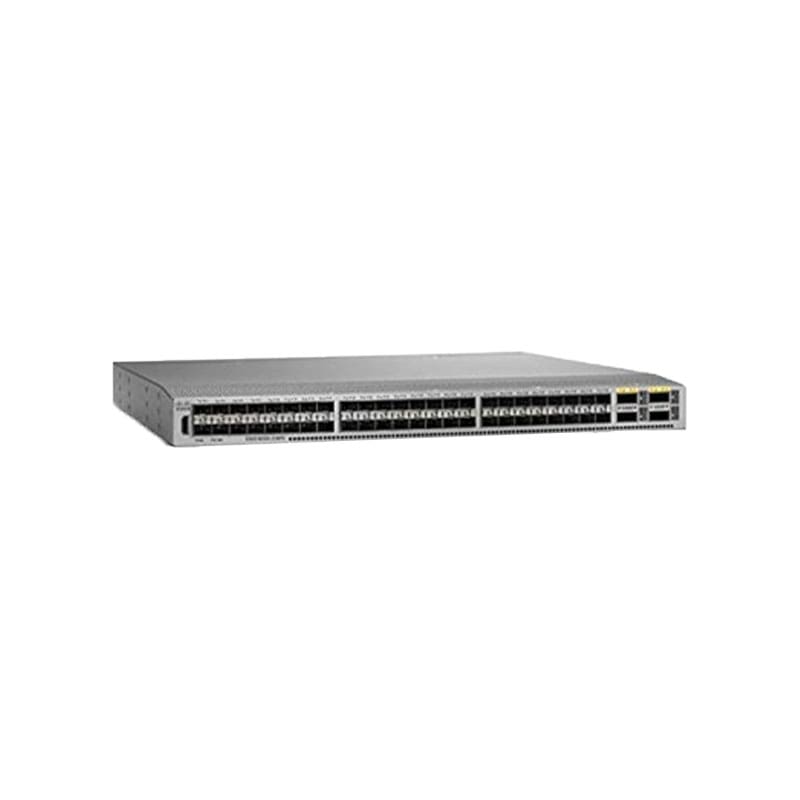

N2K-C2248PR Cisco Nexus 2248PQ 10GE Fabric Extender Expansion module
N2K-C2248PR Overview
Cisco Nexus 2248PQ 10GE Fabric Extender Expansion module. This Cisco Nexus 2248PQ provides 48 1 or 10 Gigabit Ethernet and Fiber Channel Over Ethernet (FCoE) Small Form-Factor Pluggable Plus (SFP+) server ports, and four QSFP+ (16 10 GE SFP+) uplink ports in a compact one-rack-unit (1 RU) form factor. The combination of the Cisco Nexus 2248PQ and upstream Cisco Nexus 5000 series switches and Cisco Nexus 6000 series switches provides a cost-effective access layer and scalable strategy for 10 GE and FCoE at the server access layer. It also helps to enable a smooth migration to a 40 GE network fabric.
$5,765
N2K-C2248PR Technical Specifications
Cisco Nexus 2248PQ 10GE Fabric Extender Expansion module
Brand: Cisco
Product Line: Cisco Nexus
Model: 2248PQ 10GE Fabric Extender
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), Gigabit Ethernet
Form Factor: Rack-mountable
Network Standard: ICMP/IP, TCP/IP, UDP/IP
Product Type: Expansion module
Connectivity
Interface Provided: 4 – QSFP+, 48 – SFP/SFP+
Port Quantity: 48
Network & Adapter Ports: 10 Gigabit SFP+ / SFP (mini-GBIC)
Power
Power Consumption Operational: 175 watt
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Product Information
Packaged Quantity: 1
Ports (2nd) Quantity: 4
Dimensions & Weight
Height: 1.7 inch
Weight: 17.64 lbs
Width: 17.3 inch
Depth: 17.7 inch
