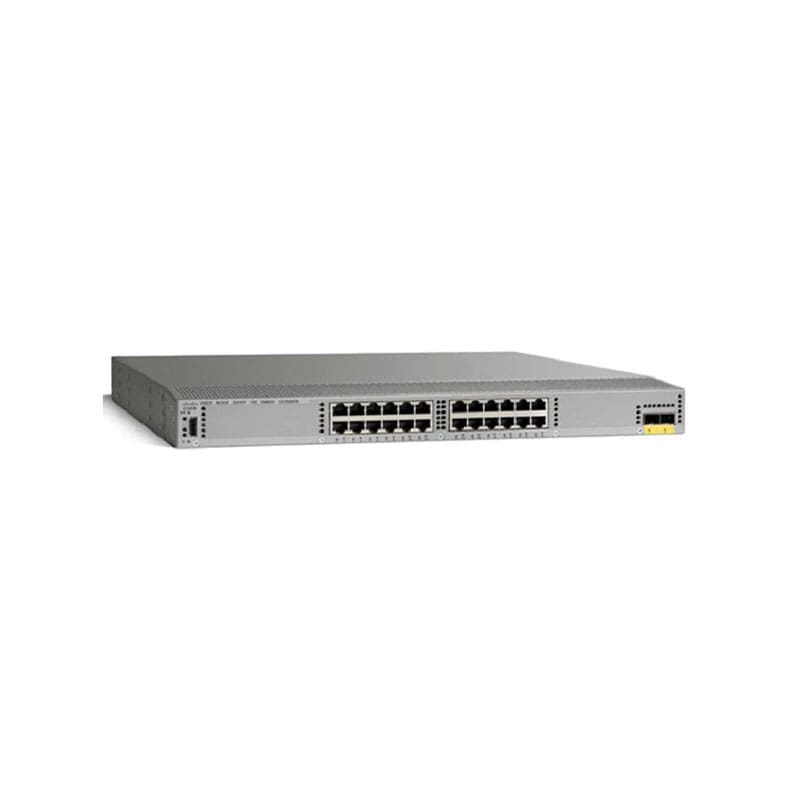

N2K-C2248TF Cisco Nexus 2248TP Fabric Extender Expansion module Gigabit Ethernet x 48
N2K-C2248TF Overview
Cisco Nexus 2248TP Fabric Extender Expansion module Gigabit Ethernet x 48. This Cisco Nexus 2000 series fabric extender is essentially an extension of the parent Cisco Nexus switch fabric, with the fabric extender and the parent Cisco Nexus switch together forming a virtual modular system. It provides a high-speed, low-latency, and scalable solution for connecting servers and other devices to the network.
$305
N2K-C2248TF Technical Specifications
Cisco Nexus 2248TP Fabric Extender Expansion module Gigabit Ethernet x 48
Brand: Cisco
Product Line: Cisco Nexus
Model: 2248TP Fabric Extender
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX
Connectivity Technology: Wired
Data Link Protocols: Fast Ethernet, Gigabit Ethernet
Form Factor: Rack-mountable
Product Type: Expansion module
Expansion Slots
Expansion Slots: 4 x SFP+
Connectivity
Interface Provided: 48 x 1000Base-T – RJ-45
Port Quantity: 48
Network & Adapter Ports: 10/100/1000
Power
Frequency: 50/60 hertz
Power Consumption Operational: 110 watt
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 1.7 inch
Weight: 17.64 lbs
Width: 17.3 inch
Depth: 17.7 inch
