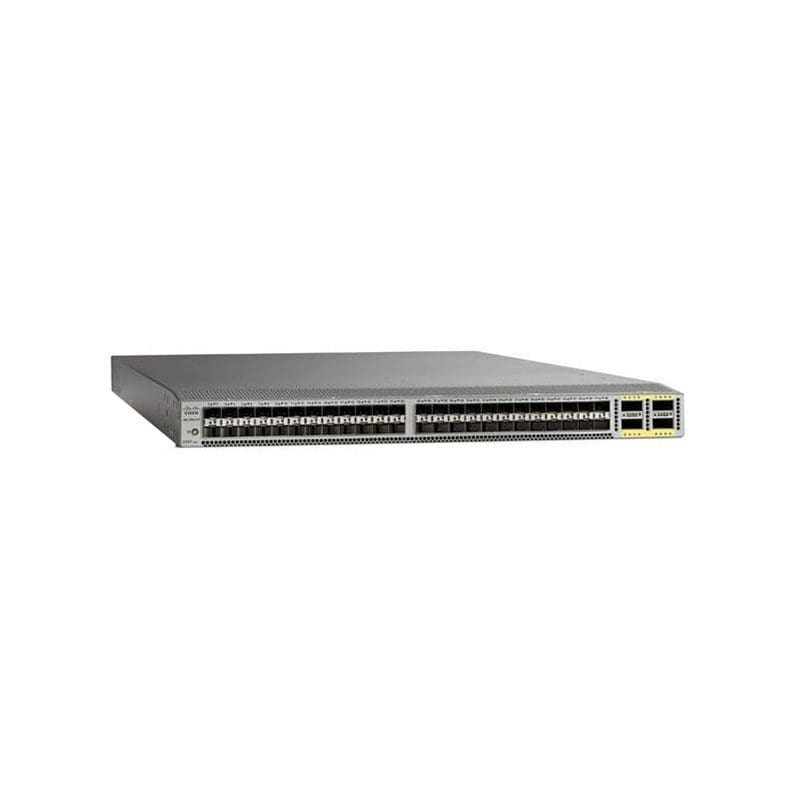

Refurbished N6K-C6001-64P Technical Specifications
Cisco Nexus 6001 switch managed rack mountable
Brand :Cisco
Product Line :Cisco Nexus
Model :6001
Packaged Quantity :1
Performance
Performance :Forwarding performance: 1.28 Tbps
Capacity
Capacity :ACL: 4000, IGMP groups: 8000, IPv4 routes: 8000, Virtual interfaces (VLANs): 4096
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Rack-mountable
Advanced Switching :Layer 3
Routing Protocol :BGP, EIGRP, EIGRP for IPv6, HSRP, IGMPv2, IGMPv3, MSDP, OSPFv2, OSPFv3, PIM-SM, RIP-2, Static IPv4 routing, Static IPv6 routing, VRRP
MAC Address Table Size :256K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :CLI, RMON, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet
Features :Access Control List (ACL) support, Broadcast Storm Control, DHCP relay, Equal-Cost Multipath (ECMP), Hot Standby Router Protocol (HSRP) support, Link Aggregation Control Protocol (LACP), Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Unicast Storm Control, Virtual Routing and Forwarding (VRF), VLAN support
Compliant Standards :IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3x
Ports
Qty :48
Type :10 Gigabit SFP+
Ports (2nd)
Qty :4
Type :40 Gigabit QSFP+
Interface Provided
Interfaces :1 x management, 4 x 40Gbit LAN 40Gb Ethernet – QSFP+ – QSFP+, 48 x 10Gbit LAN 10Gb Ethernet – SFP+ – SFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 100/230 V
Frequency Required :50/60 hertz
Features :Front-to-rear air?ow
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Authentication Method :RADIUS, TACACS+
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN300-386, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, RoHS, UL 60950-1 Second Edition, VCCI Class A
Dimensions & Weight
Width :17.3 inch
Depth :30 inch
Height :1.7 inch
Weight :31.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
