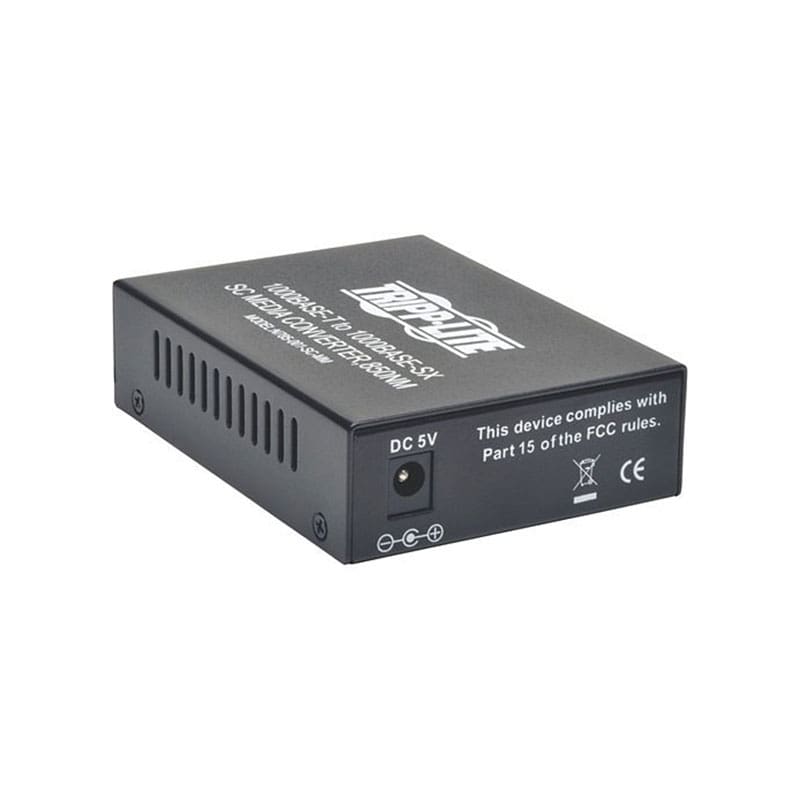

N785-001-SC-MM Tripp Lite SC Multimode Fiber Media Converter Gigabit

N785-001-SC-MM Technical Specifications

Tripp Lite SC Multimode Fiber Media Converter Gigabit

Brand: Tripp Lite
Product Line: Tripp Lite
Model: SC Multimode Fiber Media Converter Gigabit 10/100/1000 RJ45
Manufacturer: Tripp lite Cables

Network & Communication
Cable Type
Ethernet 1000Base-SX, Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Connectivity Technology
Wired
Data Link Protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate
1 GBps
Features
Auto-uplink (auto MDI/MDI-X), Full duplex mode, Half duplex mode
Form Factor
External
Max Transfer Distance
1800 ft
Optical Wave Length
850 nm
Product Type
Fiber media converter

Connectivity
Interface Provided
1 x Ethernet 1000Base-SX – SC multi-mode female x 2, 1 x Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45

Power
Frequency
50/60 hertz

Cables
Left Connector SD Type
RJ-45
Right Connector Type (SD)
SC multi-mode

Product Information
Device Type
External power adapter
Packaged Quantity
1

Dimensions & Weight
Height
1 inch
Weight
16.01 ounce
Width
4.7 inch
Depth
2.8 inch
