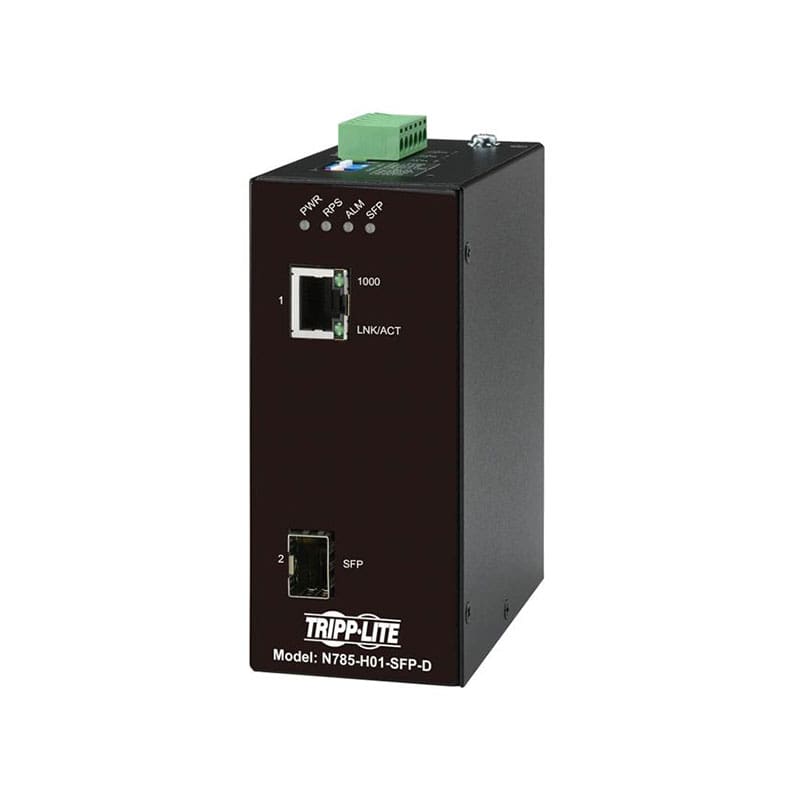

N785-H01-SFP-D Tripp Lite Hardened Gigabit Copper to Fiber Media Converter

N785-H01-SFP-D Technical Specifications

Tripp Lite Hardened Gigabit Copper to Fiber Media Converter

Cable Type
Ethernet 1000Base-T, Ethernet 1000Base-X, Ethernet 100Base-TX, Ethernet 10Base-T
Compliant Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Connectivity Technology
Wired
Data Link Protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
Features
Auto-uplink (auto MDI/MDI-X), Metal housing
Form Factor
DIN rail mountable
Product Type
Fiber media converter
Status Indicators
Status

Connectivity
Interface Provided
1 x Ethernet 1000Base-X – SFP female, 1 x Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45

Cables
Left Connector SD Type
RJ-45
Right Connector Type (SD)
SFP (mini-GBIC)

Technical Information
Max Operating Temperature
140 degree Fahrenheit
Min Operating Temperature
14 degree Fahrenheit
Operating Humidity
10 – 95% (non-condensing)

Product Information
Mounting Kit
Included
Packaged Quantity
1

Included Items
Included Accessories
2 x connector caps, DIN-rail mounting kit

Dimensions & Weight
Height
2 inch
Weight
14.88 ounce
Width
4.6 inch
Depth
3.9 inch
