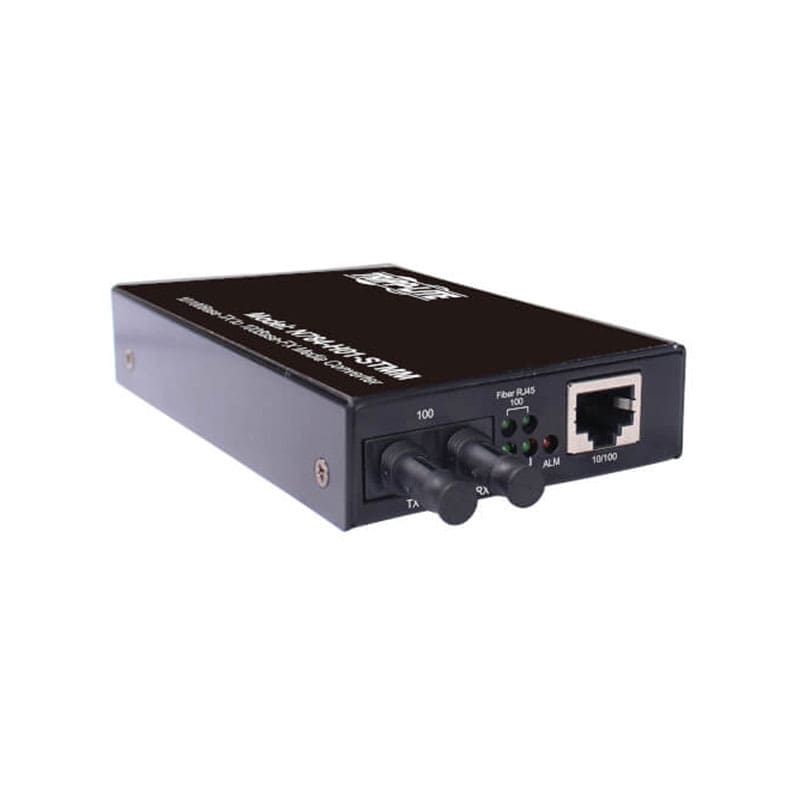

N784-H01-STMM Tripp Lite Hardened Copper to Fiber Media Converter

N784-H01-STMM Technical Specifications

Tripp Lite Hardened Copper to Fiber Media Converter

Brand: Tripp Lite
Product Line: Tripp Lite
Model: Hardened Copper to Fiber Media Converter – 10/100 Mbps, RJ45/ST Multimode, -10° to 60°C, 2 km (1.2 mi.)
Manufacturer: Tripp lite Cables

Network & Communication
Cable Type
Ethernet 100Base-TX, Ethernet 10Base-T
Compliant Standards
IEEE 802.3, IEEE 802.3u
Connectivity Technology
Wired
Data Link Protocols
Ethernet, Fast Ethernet
Data Transfer Rate
100 MBps
Features
Auto-uplink (auto MDI/MDI-X), Hardened
Form Factor
External
Max Transfer Distance
1.2 miles
Optical Wave Length
1310 nm
Product Type
Fiber media converter
Status Indicators
Link/activity, Power, Status
Transmission Medium
CAT 5/5e/6

Connectivity
Interface Provided
1 x Ethernet 10/100 – ST multi-mode female x 2, 1 x Ethernet 10Base-T/100Base-TX – RJ-45

Power
Frequency
50/60 hertz
Power Consumption Operational
1.8 watt
Required Voltage
AC 100-240 volt

Cables
Left Connector SD Type
RJ-45
Right Connector Type (SD)
ST multi-mode

Technical Information
Max Operating Temperature
140 degree Fahrenheit
Min Operating Temperature
14 degree Fahrenheit
Operating Humidity
5 – 95% RH (non-condensing)

Product Information
Device Type
External power adapter
Mounting Kit
Included
Packaged Quantity
1

Included Items
Included Accessories
2 x connector caps, L-shape rack mount brackets

Dimensions & Weight
Height
0.9 inch
Weight
8.46 ounce
Width
2.9 inch
Depth
4.3 inch
