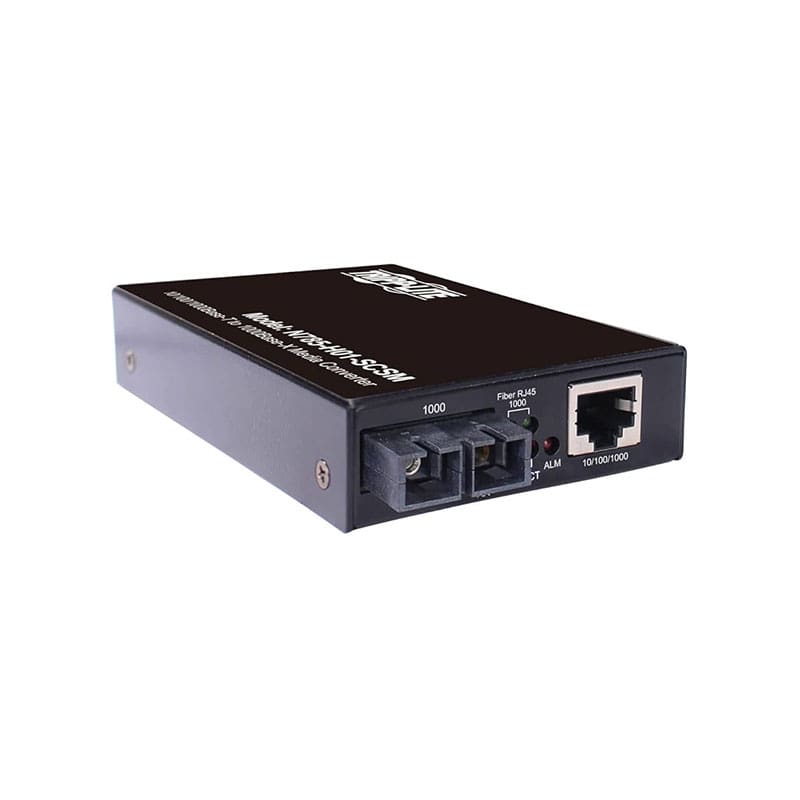

N785-H01-SCSM Tripp Lite Hardened Gigabit Copper to Fiber Media Converter

N785-H01-SCSM Overview

Tripp Lite Hardened Gigabit Copper to Fiber Media Converter

Availability: In Stock
SKU:N785-H01-SCSM
Brand:

N785-H01-SCSM Technical Specifications

Tripp Lite Hardened Gigabit Copper to Fiber Media Converter

Brand: Tripp Lite
Product Line: Tripp Lite
Model: Hardened Gigabit Copper to Fiber Media Converter – 10/100/1000 Mbps, RJ45/SC Singlemode, -10° to 60°C, 10 km (6.2 mi.)
Manufacturer: Tripp lite Cables

Network & Communication
Cable Type
Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Compliant Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Connectivity Technology
Wired
Data Link Protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate
1 GBps
Features
Auto-uplink (auto MDI/MDI-X), Hardened
Form Factor
External
Max Transfer Distance
6.2 miles
Optical Wave Length
1310 nm
Power Over Ethernet (PoE)
PoE
Product Type
Fiber media converter
Status Indicators
Link/activity, Power, Status
Transmission Medium
CAT 5/5e/6/6a

Connectivity
Interface Provided
1 x Ethernet 1000 – SC single-mode female x 2, 1 x Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45

Power
Frequency
50/60 hertz
Power Consumption Operational
1.8 watt
Required Voltage
AC 100-240 volt

Cables
Left Connector SD Type
RJ-45
Right Connector Type (SD)
SC single-mode

Technical Information
Max Operating Temperature
140 degree Fahrenheit
Min Operating Temperature
14 degree Fahrenheit
Operating Humidity
5 – 95% RH (non-condensing)

Product Information
Device Type
External power adapter
Mounting Kit
Included
Packaged Quantity
1

Included Items
Included Accessories
2 x connector caps, L-shape rack mount brackets

Dimensions & Weight
Height
0.9 inch
Weight
8.46 ounce
Width
2.9 inch
Depth
4.3 inch
