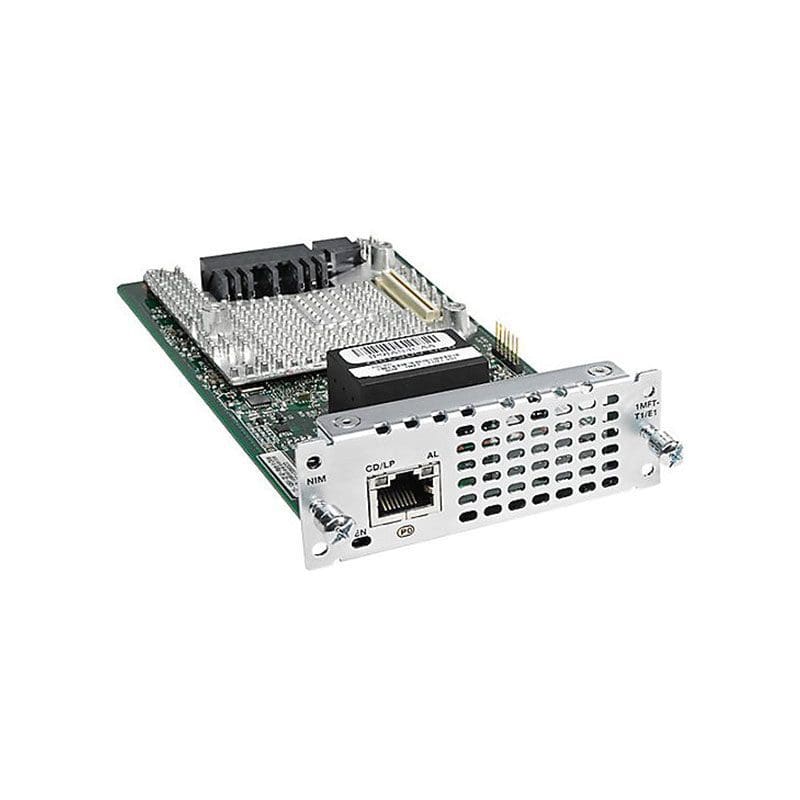

NIM-1MFT-T1/E1= Cisco Fourth-Generation Multi-flex Trunk

NIM-1MFT-T1/E1= Technical Specifications

Cisco Fourth-Generation Multi-flex Trunk Voice/Clear-channel Data T1/E1 Mod

Manufacturer :Cisco Systems
Brand :Cisco
Product Line :Cisco
Model :Fourth-Generation Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module
Packaged Quantity :1
Line Properties
Line Rate :T-1/E-1
Line Coding Format :HDB3, AMI, B8ZS
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Remote Management Protocol :SNMP, Telnet
Data Transfer Rate :2.048 MBps
Status Indicators :Alarm, Carrier detect
Features :Integrated CSU/DSU
Interface Provided
Interfaces :1 x T1/E1
Miscellaneous
Compliant Standards :EN55024, GR-1089-CORE, EN55022 Class A, CAN/CSA C22.2 No. 60950, IEC 60950-1, EN 61000-4-3, EN 61000-3-2, AS/NZS 60950, AS/NZ 3548 Class A, FCC CFR47 Part 15, ICES-003 Class A, EN 61000-4-2, VCCI Class A, EN 61000-6-2, EN 60950-1, CISPR 22 Class A, CISPR 24, GR-63-CORE, UL 60950, EN50082-1, EN 61000-3-3
