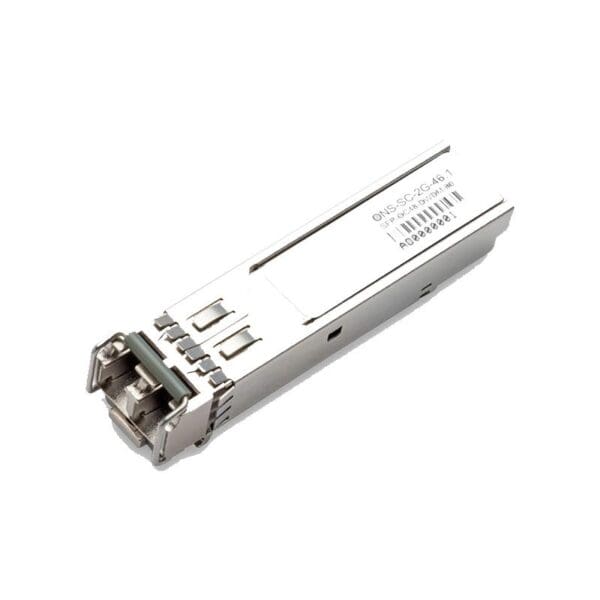

ONS-SC-2G-46.1 Cisco OC-48/STM-16 DWDM SMF Module

ONS-SC-2G-46.1 Technical Specifications

Cisco OC-48/STM-16 DWDM Small Form-factor Pluggable (SFP) 1546.12nm Transmitter Wavelength LC Connector Single-mode Fiber (SMF)

General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number ONS-SC-2G-46.1
Brand Name Cisco Transceiver
Cisco ONS Family
Product Name OC-48/STM-16 WDM SFP Module
Product Type SFP (mini-GBIC)
Technical Information
Application/Usage Data Networking
Interfaces/Ports
Interfaces/Ports Details 1 x LC Duplex OC-48/STM-16
Media & Performance
Media Type Supported Optical Fiber
Fiber Optic Cable Standard 9 µm
Fiber Mode Supported Single-mode Fiber (SMF)
Maximum Data Transfer Rate 1 Gbit/s OC-48/STM-16
Miscellaneous
Additional Information-
Spare Product
Wavelength: 1546.12 nm
Transmitter Output Power Min/Max (dBm): 0 to +4
Receiver Input Power Min/Max (dBm): -28 to -9
Compatibility
ONS 15600 SONET/SDH Platform with:
ASAP Card
ONS 15310-MA Platform with:
CTX2500 Card
ONS 15454 SONET/SDH Platform with:
MRC-12 Card
