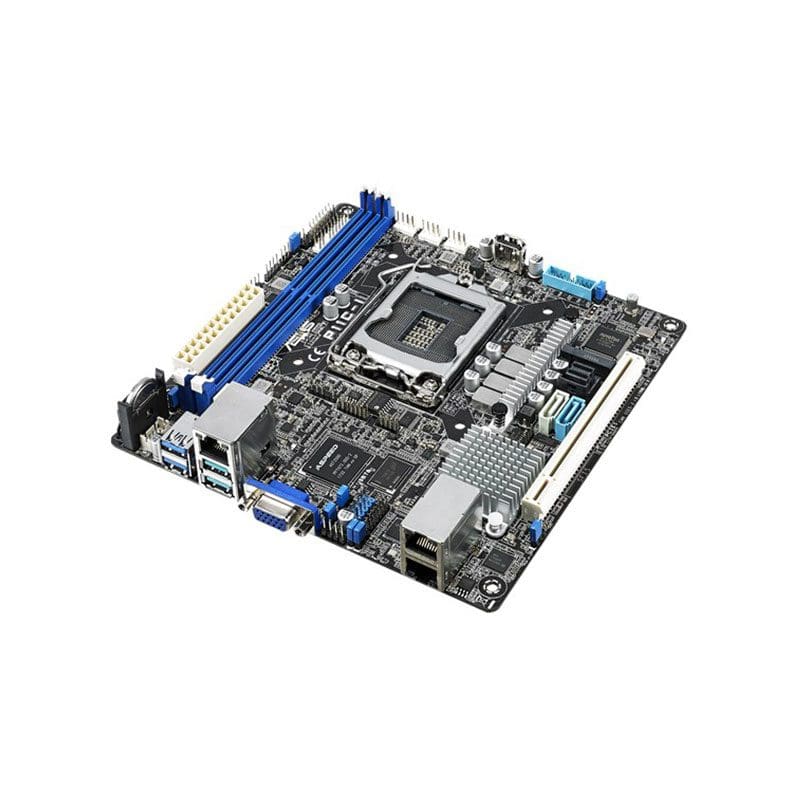

P11C-I ASUS Socket LGA 1151 Intel C242 Chipset Xeon E-2100/

P11C-I Technical Specifications

ASUS Socket LGA 1151 Intel C242 Chipset Xeon E-2100/ Core i3/ Pentium / Celeron Processors Support DDR4 2x DIMM 6x SATA 3.0Gb/s Mini-ITX Server Motherboard Mfr PN

General Information
Manufacturer Part Number P11C-I
Brand Name Asus
Product Type Server Motherboard
Processor & Chipset
Chipset Manufacturer Intel
Total Processor Supported 1
Processor Socket Socket H4 LGA-1151
Processor Supported Xeon
Core i3
Celeron
Pentium
Memory
Number of Memory Slots 2
Memory Form Factor DIMM
UDIMM
Maximum Memory 32 GB
Memory Speed Supported 2.67 GHz
2.40 GHz
Memory Technology DDR4 SDRAM
I/O Controller
Controller Type Serial ATA/600
Intel RSTe Yes
RAID Supported Yes
RAID Levels 0
1
5
10
Video
Onboard Video On-board Video Chipset
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2500
Network & Communication
Gigabit Ethernet Yes
I/O Expansions
Number of Total Expansion Slots 1
Total Number of PCI Express Slots 1
Number of PCI Express x16 Slots 1
Interfaces/Ports
Total Number of USB Ports 4
Number of USB 3.1 Ports 4
VGA Yes
Onboard Interfaces
Number of SATA Interfaces 2
Number of Mini-SAS Interfaces 1
Number of M.2 Interfaces 1
Total Number of Onboard USB Ports 1
Physical Characteristics
Form Factor Mini ITX
Width 6.7″
Depth 6.7″
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
WEEE
