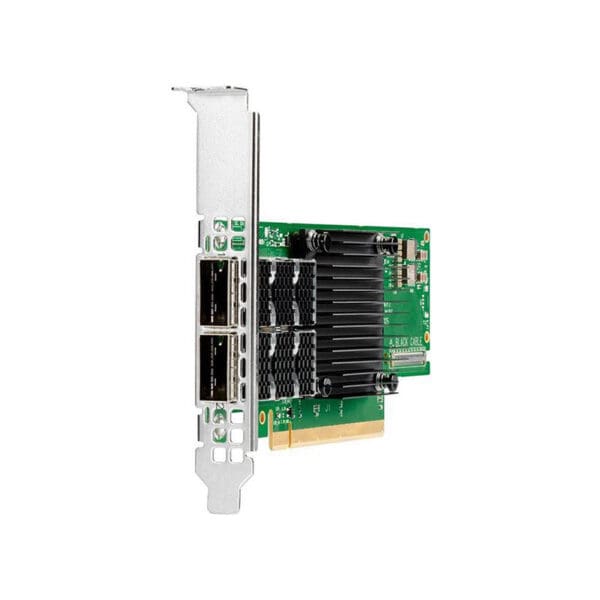

P23666-H21 HPE InfiniBand HDR100 MCX653106A-ECAT Network Adapter PCIe
P23666-H21 Overview
HPE HDR InfiniBand adapters are designed for customers who need low latency and high bandwidth InfiniBand interconnect in their high performance computing (HPC) systems. The adapters coupled with HDR switches via HDR splitter cables provide simplified fabrics, requiring less equipment while achieving the same performances as the previous InfiniBand generation.
$2,158
P23666-H21 Technical Specifications
HPE InfiniBand HDR100 MCX653106A-ECAT Network Adapter PCIe 4.0 x16 100Gb Ethernet/100Gb Infiniband QSFP28 x 2
Brand: HPE
Product Line: HPE InfiniBand HDR100
Model: MCX653106A-ECAT
Manufacturer: HP CTO Server Avnet
Processor
Processor Type: Mellanox ConnectX-6
Processors Installed: 1
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 100 Gigabit InfiniBand, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, Gigabit Ethernet
Data Transfer Rate: 100 GBps
Form Factor: Plug-in card
Host Interface: PCI Express 4.0 x16
Low Profile: Low profile
Network Standard: iSCSI, TCP/IP, UDP/IP
Product Type: Network adapter
Connectivity
Port Quantity: 2
Power
Power Consumption Operational: 17.7 watt
Technical Information
Max Operating Temperature: 131 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 95% (non-condensing)
Physical Characteristics
Color Category: Black, Green, Silver
