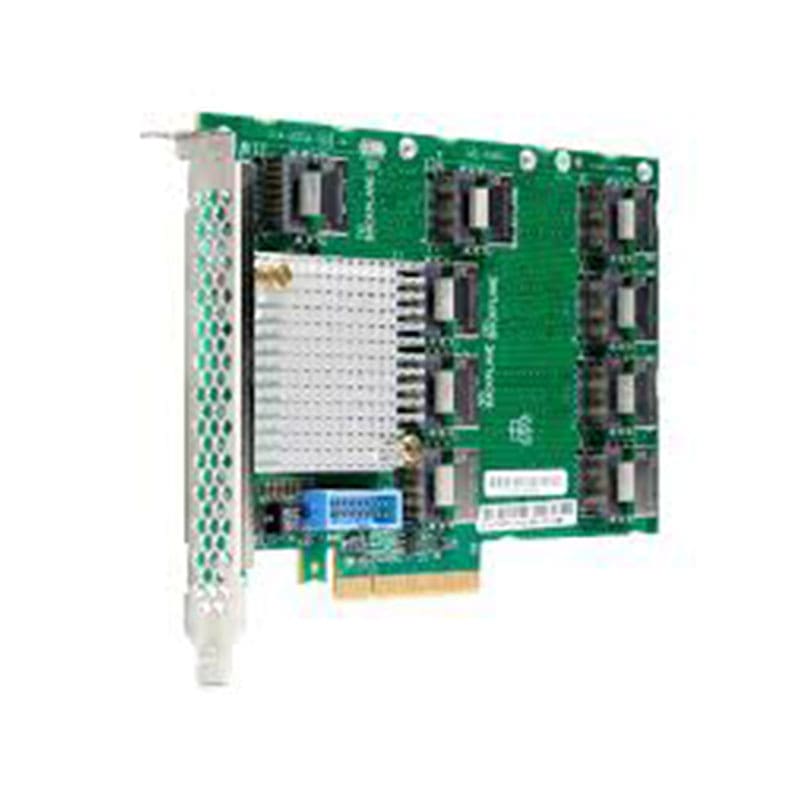

P39270-B21 HPE SAS Expander Card Storage Controller Upgrade Card
P39270-B21 Overview
The HPE SAS Expander card offers internal storage expansion inside your server, enabling support for more than 8 internal hard drives when connected to a Gen9-capable Smart HBS or Smart Array controller. This full height card supports 12 Gb/s SAS connectivity and 9 internal ports with up to 26 physical links. The SAS Expander card is ideal for users who want to RAID on more than 8 internal hard drives or who want to add an additional internal drive cage and RAID on all internal drives depending on the controller.
$550
P39270-B21 Technical Specifications
HPE SAS Expander Card Storage Controller Upgrade Card SATA 6Gb/s / SAS 12Gb/s PCIe 3.0 x8
Brand: HPE
Product Line: HPE
Model: SAS Expander Card
Manufacturer: HP CTO Server Avnet
Storage
Controller Interface: SATA 6Gb/s / SAS 12Gb/s
Connectivity
Interface Provided: 28 x mini-SAS
Power
Power Device Type: None
Technical Information
Form Factor (Storage Controller): Plug-in card
Host Bus Interface: PCIe 3.0 x8
Supported Devices: Hard Drive, Solid State Drive
Product Information
Product Type: Storage controller upgrade card
Dimensions & Weight
Height: 3.3 inch
Weight: 23.98 ounce
Width: 11.7 inch
Depth: 15.1 inch
Physical Characteristics
Color Category: Green, Silver
