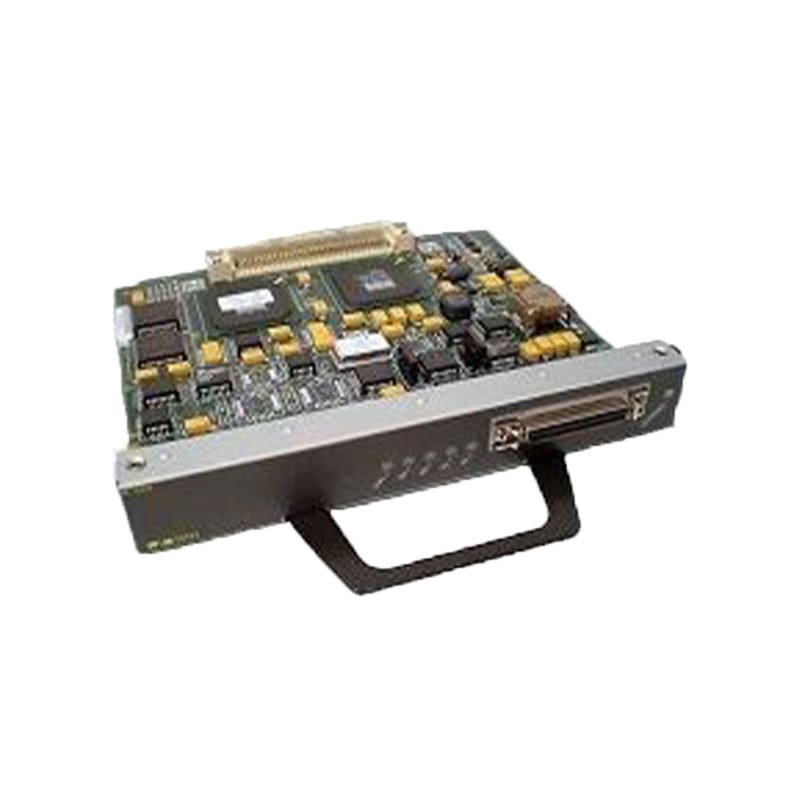

PA-H Cisco 1 Port Adapter Expansion Module
PA-H Overview
Cisco 1 Port Adapter Expansion Module. This Cisco 1 Port Adapter Expansion Module is a modular expansion card designed for use with Cisco 7200 and 7500 series routers. This expansion module provides one additional port for a variety of connectivity options, including T1, E1, and HSSI.
PA-H Technical Specifications
Cisco 1 Port Adapter Expansion Module
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: Expansion Module Serial Port Adapter 1 Port HSSI
Product Type: Port Adapter
Technical Information
Application/Usage: Data Networking
Data Transfer Rate: 52 Mbps HSSI Full-duplex
Data Transfer Rate: Up to 2 Mbps (T1/E1), up to 52 Mbps (HSSI)
Network / Transport Protocol: PPP, HDLC, Frame Relay, MLPPP
Expansion / Connectivity: 1 x expansion slot
Supported Platforms: Cisco 7200 and 7500 series routers
Interfaces/Ports
Interfaces/Ports Details: 1 x SCSI-2 HSSI WAN
Interfaces: 1 x T1/E1, 1 x HSSI
Media & Performance
Connectivity Media: Serial Cable
Dimensions and Weight
Dimensions: 3.5 x 0.8 x 7.1 inches
Weight: 0.24 lbs
