Refurbished QFX5100-48S-DC-AFO Technical Specifications

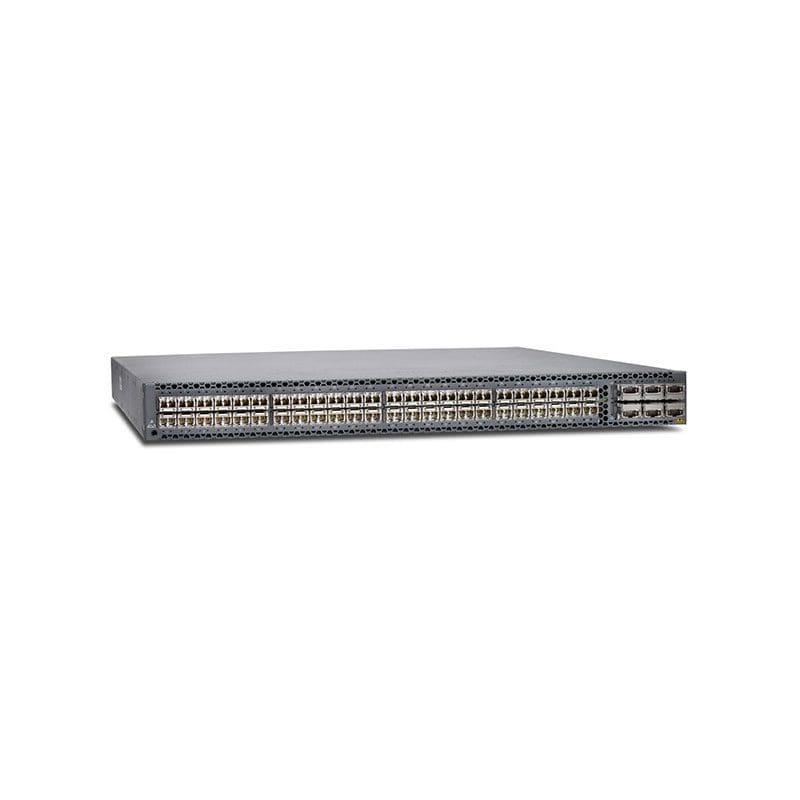

Juniper Networks QFX Series QFX5100-48S switch 48 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks QFX Series
Model :QFX5100-48S
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Built-in Devices :32 GB SSD
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :1.5 GHZ
RAM
Installed Size :8 GB
Performance
Performance :Switching capacity: 1.44 Tbps, Switching capacity: 1.07 Bpps
Capacity
Capacity :IPv4 hosts: 208000, IPv4 routes (Multicast): 104000, VLAN Spanning Tree Protocol instances: 253, IPv6 routes (Unicast): 64000, ARP entries: 48000, IPv6 routes (Multicast): 52000, Virtual interfaces (VLANs): 4091, IPv4 routes (Unicast): 128000, Multiple Spanning Tree Protocol instances: 64
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :48
Fibre Channel :FC-BB-6, FC-BB-5
Advanced Switching :Layer 3
Routing Protocol :VRRP, RIP, PIM-SM, ECMP, IGMPv3, RIP-2, OSPF, CIDR, Static IP routing, MSDP, IGMP, IGMPv2, Bidirectional Forwarding Detection (BFD)
MAC Address Table Size :288K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :SNMP 2, RMON, SNMP 3, CLI, SSH, Telnet, SNMP 1
Features :Data Center Bridging Exchange (DCBX) support, Flow control, IGMP snooping, IPv6 support, Dynamic ARP Inspection (DAI), IPv4 support, DHCP server, VPN support, Class of Service (CoS), VLAN support, Quality of Service (QoS), Access Control List (ACL) support, DHCP relay, Loop prevention, SNTP support, Trivial File Transfer Protocol (TFTP) support, VLAN Spanning Tree Protocol (VSTP), Data Center Bridging (DCB), Store and forward, Cut-through, Redundant trunk group (RTG), RARP support, Trunking, Redundant hot swappable fans, Management Information Base (MIB), DoS attack prevention, DHCP snooping, Low-latency queuing (LLQ), BOOTP support, Weighted Random Early Detection (WRED), Strict Priority Queuing (SPQ), Tunneling, Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, ARP support, High Availability, Front to back airflow, FCoE forwarding, Non-Stop Bridging (NSB), 12 MB shared buffer, Graceful Route Engine Switchover (GRES), Non-Stop Routing (NSR), MAC address filtering
Compliant Standards :IEEE 802.1p, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1ab (LLDP), IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1Qaz, IEEE 802.1Qbb, Shaped Deficit Weighted Round-Robin (SDWRR), IEEE 802.1Qbg, IEEE 802.1s, IEEE 802.1Qau
Ports
Qty :48
Type :1 Gigabit SFP/ 10 Gigabit SFP+
Ports (2nd)
Qty :6
Type :40 Gigabit QSFP+ (breakout compatible)
Interface Provided
Interfaces :1 x SFP management, 6 x QSFP+ (breakout compatible), 1 x USB management, 48 x SFP+, 1 x console management, 1 x RJ-45 management
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :DC -36 -72 V
Power Consumption Operational :150 watt
80 PLUS Certification :80 PLUS
System Requirements
OS Required :JUNOS
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :AES, MD5
Authentication Method :Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, RADIUS
MTBF :200,000 hour(s)
Compliant Standards :China RoHS, UL 60950-1, EN55022 Class A, WEEE, GR-63-CORE, VCCI Class A, EN 60950-1, NCC, EN 60825-1, IEC 60950-1, FCC CFR47 Part 15, NEBS level 3, BSMI CNS 13438, CAN/CSA-C22.2 No. 60950-1, RoHS 6/6, AS/NZS CISPR 22, GR-1089-CORE, REACH
Dimensions & Weight
Width :17.4 inch
Depth :20.5 inch
Height :1.7 inch
Weight :21.83 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :0 – 95% (non-condensing)
