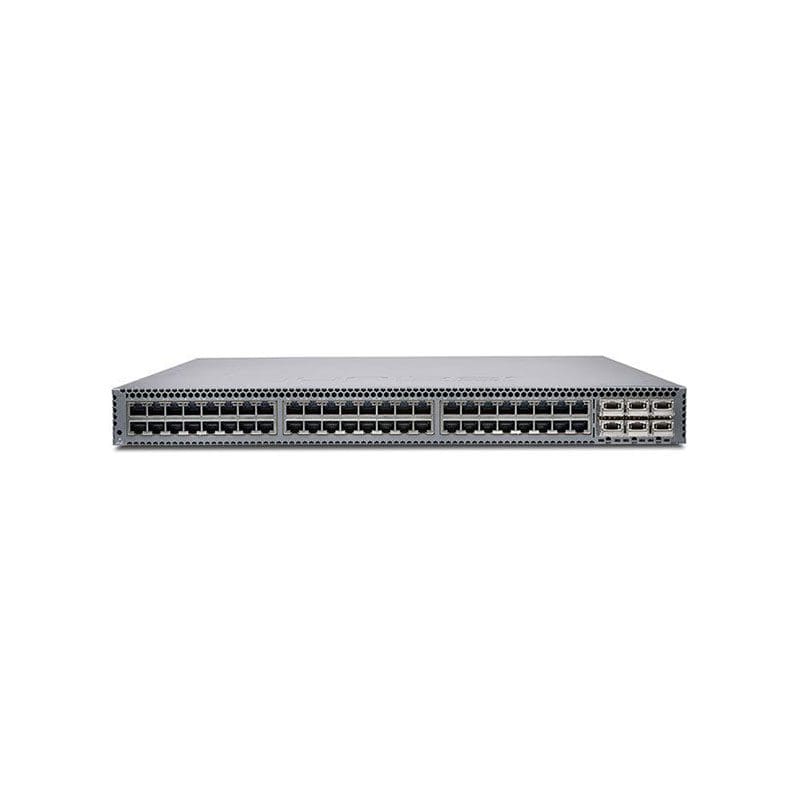

Refurbished QFX5100-48T-AFO Juniper Networks QFX Series

Refurbished QFX5100-48T-AFO Overview

QFX5100-48T-AFO Juniper Networks QFX Series QFX5100-48T switch 48 ports managed rack mountable. The QFX5100-48T offers 48 RJ-45-based 10GbE ports and up to six 40GbE ports for providing uplinks to aggregation switches. Each RJ-45 port can operate in three different speeds, providing connectivity using the same shielded twisted pair copper cables.

$5,730

Buy Now
Availability: In Stock
SKU:QFX5100-48T-AFO-RF
Brand:

Refurbished QFX5100-48T-AFO Technical Specifications

Juniper Networks QFX Series QFX5100-48T switch 48 ports managed rack mountable

    • Netscreen
    • Juniper, Juniper Networks
    • Juniper Networks QFX Series
    • QFX5100-48T
    • 1
  • Chassis

    • Front to back airflow
    • 32 GB SSD
  • Processor

    • 1
    • Intel
    • 1.5 GHZ
  • RAM

    • 8 GB
  • Performance

    • Switching capacity: 1.44 Tbps, Switching capacity: 1.08 Bpps
  • Capacity

    • IPv4 routes (Unicast): 128000, IPv4 hosts: 208000, Virtual interfaces (VLANs): 4091, IPv6 routes (Multicast): 52000, Multiple Spanning Tree Protocol instances: 64, IPv6 routes (Unicast): 64000, ARP entries: 48000, IPv4 routes (Multicast): 104000, VLAN Spanning Tree Protocol instances: 253
  • Networking

    • Switch
    • Network hubs and switches
    • 10 Gigabit Ethernet
    • Rack-mountable
    • 48
    • FC-BB-6, FC-BB-5
    • Layer 3
    • PIM-SM, OSPF, VRRP, Bidirectional Forwarding Detection (BFD), CIDR, ECMP, RIP-2, IGMPv2, IGMP, MSDP, IGMPv3, RIP, Static IP routing
    • 288K entries
    • 9216 bytes
    • Yes
    • RMON, SNMP 2, SSH, SNMP 3, Telnet, SNMP 1, CLI
    • Data Center Bridging Exchange (DCBX) support, Loop prevention, VLAN support, Multiple Spanning Tree Protocol (MSTP) support, Weighted Random Early Detection (WRED), VPN support, BOOTP support, Non-Stop Routing (NSR), Tunneling, 12 MB shared buffer, SNTP support, Spanning Tree Protocol (STP) support, sFlow, Redundant trunk group (RTG), Redundant hot swappable fans, DoS attack prevention, Trunking, Strict Priority Queuing (SPQ), Flow control, DHCP snooping, IPv4 support, DHCP relay, Dynamic ARP Inspection (DAI), DHCP server, VLAN Spanning Tree Protocol (VSTP), IPv6 support, Management Information Base (MIB), Quality of Service (QoS), Class of Service (CoS), High Availability, Graceful Route Engine Switchover (GRES), MAC address filtering, Rapid Spanning Tree Protocol (RSTP) support, Front to back airflow, Access Control List (ACL) support, Non-Stop Bridging (NSB), ARP support, RARP support, Cut-through, Store and forward, Low-latency queuing (LLQ), Data Center Bridging (DCB), IGMP snooping, Trivial File Transfer Protocol (TFTP) support, FCoE forwarding
    • IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1Qbb, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1s, Shaped Deficit Weighted Round-Robin (SDWRR), IEEE 802.1ab (LLDP), IEEE 802.1Qaz, IEEE 802.1Qbg
  • Ports

    • 48
    • 100/1000/10000
  • Ports (2nd)

    • 6
    • 40 Gigabit QSFP+ (breakout compatible)
  • Interface Provided

    • 1 x RJ-45 management, 6 x QSFP+ (breakout compatible), 48 x 10GBase-T RJ-45, 1 x SFP management, 1 x console management, 1 x USB management
  • Power Device

    • Internal power supply
    • Hot-plug
    • Yes
    • 1+1
    • 2
    • 2
    • AC 120/230 V
    • 335 watt
    • 80 PLUS
  • System Requirements

    • JUNOS
  • Miscellaneous

    • 1
    • MD5, AES
    • Secure Shell v.2 (SSH2), TACACS+, Secure Shell (SSH), RADIUS
    • GR-63-CORE, VCCI Class A, CAN/CSA C22.2 No. 60950-1, AS/NZS CISPR 22, REACH, GR-1089-CORE, NCC, FCC CFR47 Part 15, UL 60950-1, EN 60950-1, WEEE, NEBS level 3, China RoHS, RoHS 6/6, EN55022 Class A, BSMI CNS 13438, IEC 60950-1, EN 60825-1, CAN/CSA-C22.2 No. 60950-1
  • Dimensions & Weight

    • 17.4 inch
    • 21.5 inch
    • 1.7 inch
    • 24.69 lbs
  • Environmental Parameters

    • 32 degree Fahrenheit
    • 104 degree Fahrenheit
    • -40 degree Fahrenheit
    • 158 degree Fahrenheit
    • 5 – 90% (non-condensing)
    • 0 – 95% (non-condensing)
