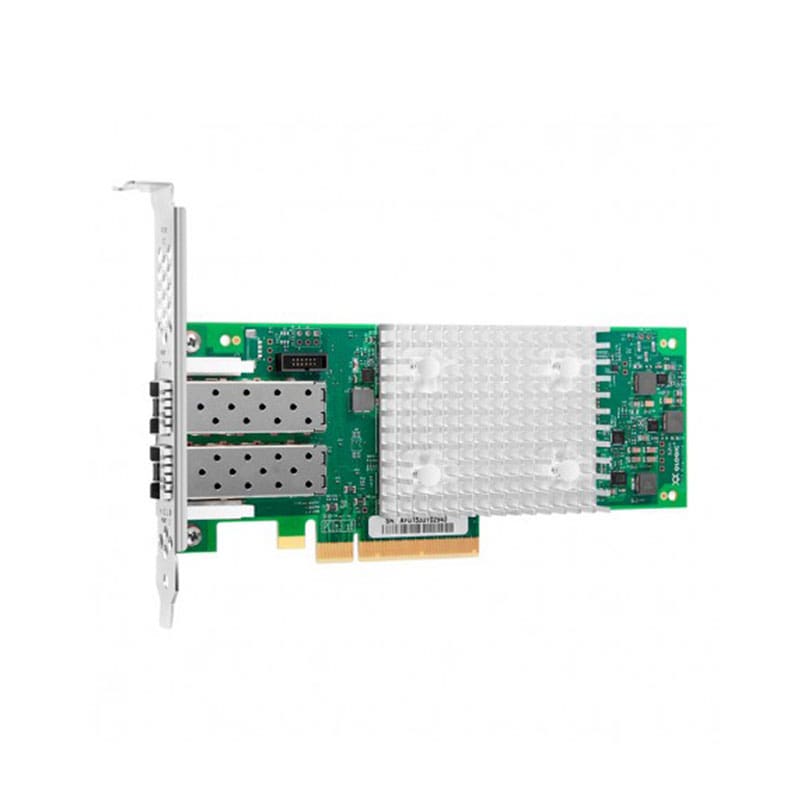

QLE2692-SR-CK QLogic Host Bus Adapter PCIe 3.0 x8 16Gb Fibre Channel x 2

QLE2692-SR-CK Technical Specifications

QLogic Host Bus Adapter PCIe 3.0 x8 16Gb Fibre Channel x 2

Brand: QLogic
Product Line: QLogic
Model: QLE2692-SR-CK
Manufacturer: QLOGIC
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 16Gb Fibre Channel
Data Transfer Rate: 16 GBps
Fibre Channel: FC-GS-2, FC-GS-3, FCP-2, FC-PI-5, FC-Tape, SCSI-FCP
Form Factor: Plug-in card
Host Interface: PCI Express 3.0 x8
Low Profile: Low profile
PCI Specification Revision: PCIe 3.1
Product Type: Host bus adapter
Remote Management: CLI, SMI-S
Connectivity
Interface Provided: 2 x 16Gb Fibre Channel
Port Quantity: 2
Network & Adapter Ports: 16Gb Fibre Channel
Software
Software Type: QConvergeConsole
Technical Information
Max Operating Temperature: 131 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 – 90%
Product Information
Packaged Quantity: 1
Included Items
Included Accessories: Full-height bracket
Dimensions & Weight
Height: 2.7 inch
Depth: 6.6 inch
