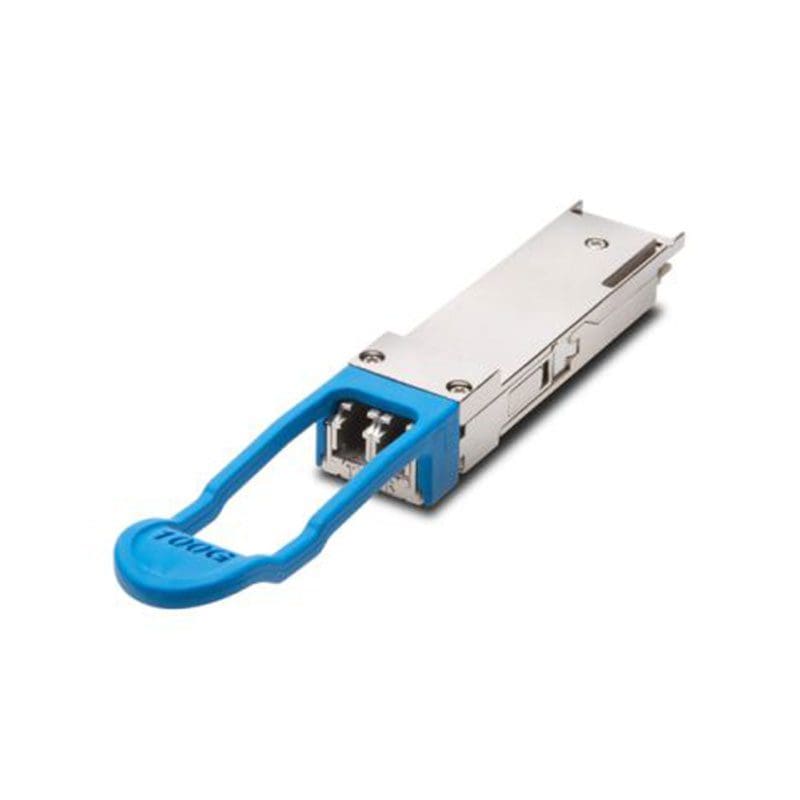

QSFP-100G-SR4-T2 Juniper 100G-SR4 Ethernet Only QSFP28 Module

QSFP-100G-SR4-T2 Technical Specifications

Juniper Networks 100G-SR4 Ethernet Only QSFP28 Module Type

Media Type: 4 Lanes of MMF
Connectors: MTP/MPO
TX Wavelength: 850 nm.
RX Wavelenght: 850 nm.
Minimum Optical Budget: 1.9 dB
Maximum Distance: 100m
Supported Data Rate: 103.125 Gbps
Supported Applications: 100G Ethernet (103.125Gbps)
DDM/DOM: Supported
CDR (Clock and Data Recovery) chip Supported
Forward Error Correction (FEC): Not Supported
Transmitter Type: VSCEL Laser
Minimum Transmitting Power: Each Lane -8.4 dBm
Tx Wavelength Bandwidth: 20 nm (840-860 nm)
Maximum Transmitting Power: Each Lane 2.4 dBm
Average Launch Power (Min) Each Lane: -8.4 dBm
Receiver Sensitivity: Each Lane -10.3 dBm
Extinction Ratio (Min): 3 dB
Receiver Type: PIN photodiode
Receiver Overload: 3.4 dBm
Temperature Range: Standard 0°-70°C
Storage Temperature: -40° to 85°C
Relative Humidity: 0 to 85%
