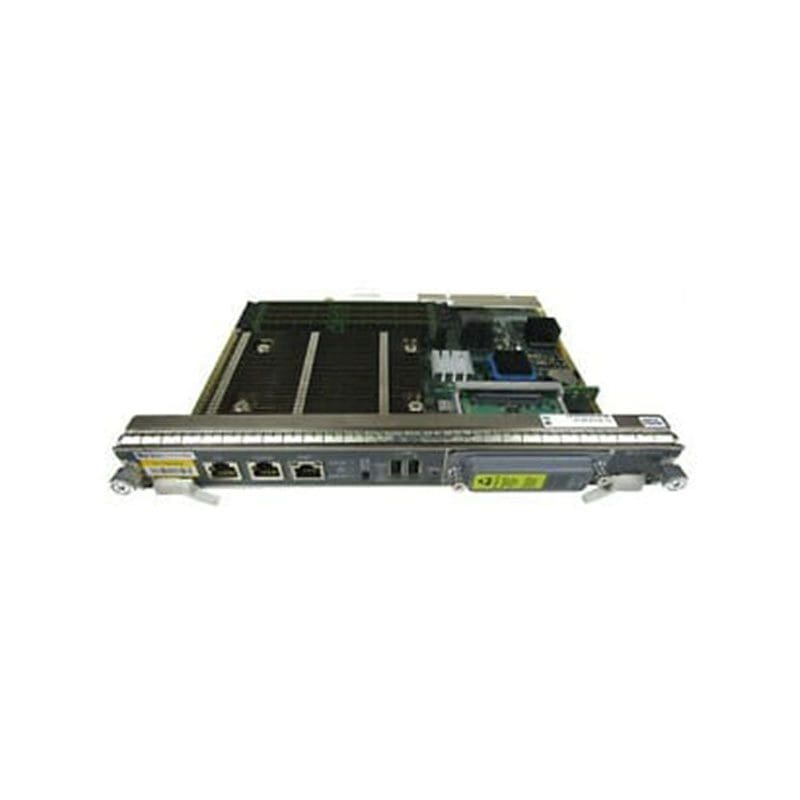

RE-S-X6-64G-UB Juniper Networks Routing Engine

RE-S-X6-64G-UB Technical Specifications

Juniper Networks Routing Engine

Routing engine
6 Core
2.0GHz
One 10-Gigabit Ethernet interface between the Routing Engine and Switch Control Board.
Two 50-GB slim solid-state drives—SSD1 (primary) and SSD2 (secondary)—Provide storage for software images, configuration files, microcode, log files, and memory dumps. The Routing Engine reboots from SSD2 when boot from primary SSD fails.
Two USB ports (USB1 and USB2)—Provide a removable media interface through which you can install Junos OS manually. The Junos OS supports USB versions 3.0, 2.0, and 1.1.
Interface ports—The AUX, CONSOLE, and MGMT provide access to management devices. Each Routing Engine has one 10/100/1000-Mbps Ethernet port for connecting to a management network, and two asynchronous serial ports—one for connecting to a console and one for connecting to a modem or other auxiliary device.
