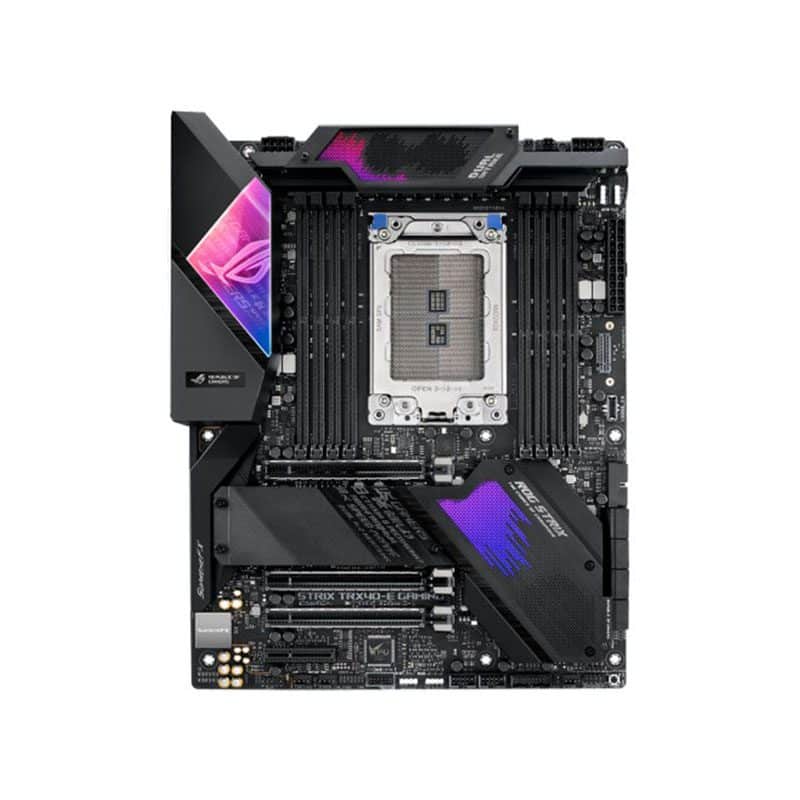

Refurbished ROG-STRIX-TRX40-E-GAMING ASUS sTRX4 AMD TRX40

Refurbished ROG-STRIX-TRX40-E-GAMING Technical Specifications

ASUS sTRX4 AMD TRX40 SATA 6Gb/s ATX AMD Motherboard

Model
Brand
ASUS
Series
ROG STRIX
Model
TRX40-E GAMING

Supported CPU
CPU Socket Type
sTRX4
CPU Type
Supports 3rd Gen AMD Ryzen Threadripper Desktop Processors for Socket sTRX4

Chipsets
Chipset
AMD TRX40

Memory
Number of Memory Slots
8×288pin
Memory Standard
DDR4 4666(O.C.)/ 4600(O.C.)/ 4400(O.C)/ 4333(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 2800/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum Memory Supported
256GB
Channel Supported
Quad Channel

Expansion Slots
PCI Express 4.0 x16
3 x PCIe 4.0 x16 (x16/x16/x16)
PCI Express x4
1 x PCI Express 4.0 x4

Storage Devices
SATA 6Gb/s
8 x SATA 6Gb/s
M.2
3rd Gen AMD Ryzen Threadripper Desktop Processors:
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)
AMD TRX40 Chipset:
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 (PCIe 4.0 x4 and SATA modes)
SATA RAID
0/1/10

Onboard Audio
Audio Chipset
ROG SupremeFX S1220
Audio Channels
8 Channels

Onboard LAN
LAN Chipset
Realtek RTL8125-CG
Second LAN Chipset
Intel I211-AT
Max LAN Speed
10/100/1000/2500Mbps + 10/100/1000Mbps
Wireless LAN
Intel Wi-Fi 6 AX200
Wi-Fi 802.11 ax, Bluetooth 5.0
Supports dual band frequency 2.4/5 GHz
Supports 2×2 MU-MIMO
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Bluetooth
BT 5.0

Rear Panel Ports
Back I/O Ports
1 x LAN (RJ45) port(s)
8 x USB 3.2 Gen 2 (7 x Type-A + 1 x Type-C)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Anti-surge 2.5G LAN (RJ45) port
1 x USB BIOS FlashBack Button(s)

Internal I/O Connectors
Onboard USB
1 x USB 3.2 Gen 2 front panel connector
2 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors
2 x Aura RGB Strip Header
2 x Addressable Gen 2 header(s)
1 x TPM header
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x USB BIOS FlashBack button(s)
1 x System panel connector
1 x Speaker connector
1 x Chipset Fan Header
1 x VRM_HS_FAN Header
