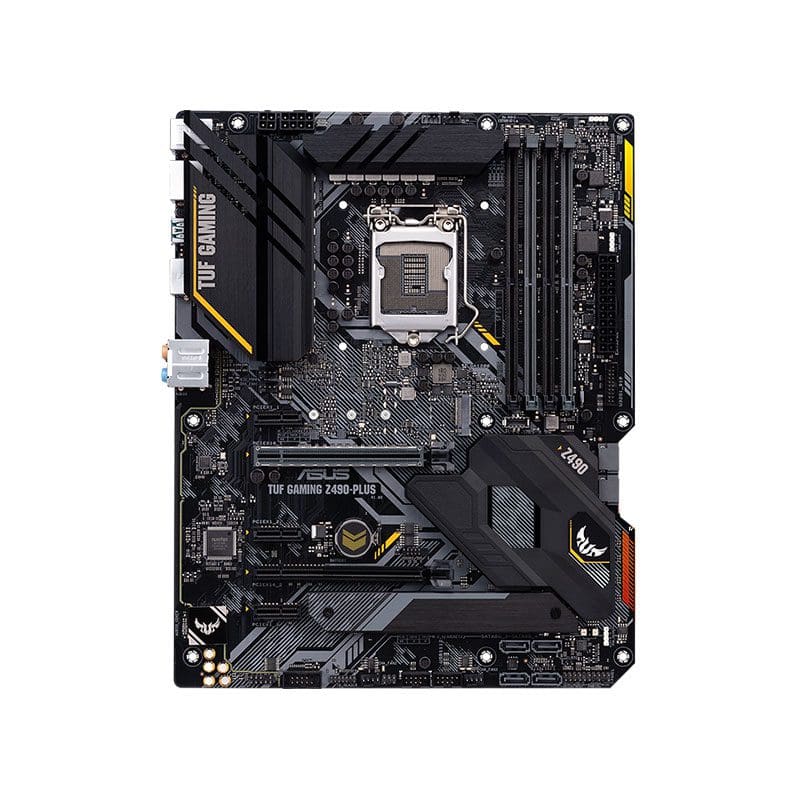

Refurbished TUF-GAMING-Z490-PLUS (WI-FI) ASUS LGA

Refurbished TUF-GAMING-Z490-PLUS Technical Specifications

(WI-FI) ASUS LGA 1200 (Intel 10th Gen) Intel Z490 (WiFi 6) SATA 6Gb/s ATX Intel Motherboard (Dual M.2

Model
Brand
ASUS
Model
TUF GAMING Z490-PLUS (WI-FI)

Supported CPU
CPU Socket Type
LGA 1200
CPU Type
Intel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold and Celeron processors*
* Refer to www.asus.com for CPU support list.
Supported CPU Technologies
Supports Intel Turbo Boost Technology 2.0**
** The support of these features depends on the CPU types.

Chipsets
Chipset
Intel Z490

Memory
Number of Memory Slots
4×288pin
Memory Standard
DDR4 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory*
* 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported
128GB
Channel Supported
Dual Channel

Expansion Slots
PCI Express 3.0 x16
Intel Socket 1200*
1 x PCIe 3.0 x16 slot (support x16 modes)
Intel Z490 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)

* Support PCIe bifurcation for RAID on CPU function.
PCI Express x1
3 x PCIe 3.0 x1 slots

Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s
M.2
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)**
* M.2_1 shares bandwidth with SATA6G_2. When M.2_1 runs SATA mode, SATA6G_2 will be disabled.
** M.2_2 shares bandwidth with SATA6G_56. When M.2_2 is occupied, SATA6G_56 will be disabled.
Intel Optane Ready
Yes
SATA RAID
0/1/5/10

Onboard Audio
Audio Chipset
Realtek S1220A High Definition Audio CODEC
Audio Channels
8 Channels
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
10/100/1000Mbps
Wireless LAN
Intel Wi-Fi 6 AX201
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO
Supports up to 2.4/5GHz transfer speed
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports CNVI interface
Bluetooth
Bluetooth v5.1
* BT 5.1 function will be ready in Windows 10 build 19041 later.

Rear Panel Ports
Back I/O Ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Intel I219-V 1Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Onboard USB
1 x USB 3.2 Gen 2 Front Panel connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
1 x USB 2.0 header supports additional 1 USB 2.0 port (4-pin)
Other Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
1 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 System Panel header with Chassis intrude function
1 x Thunderbolt header
