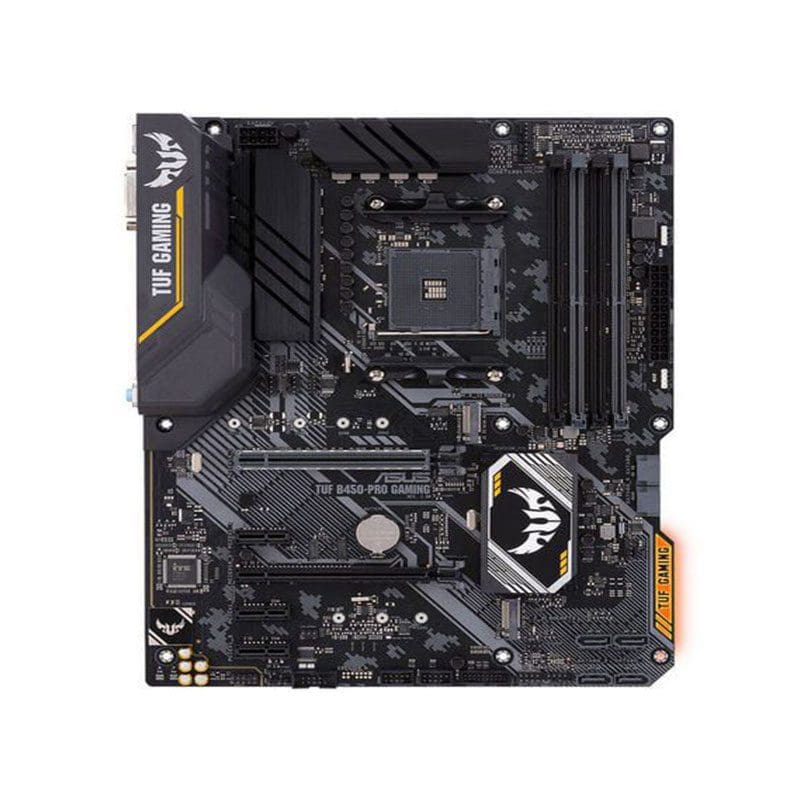

Refurbished TUF-B450-PRO-GAMING ASUS AM4 AMD B450 SATA 6Gb/s

Refurbished TUF-B450-PRO-GAMING Technical Specifications

GAMING ASUS AM4 AMD B450 SATA 6Gb/s ATX AMD Motherboard

Model
Brand
ASUS
Series
TUF
Model
B450-Pro Gaming

Supported CPU
CPU Socket Type
AM4
CPU Type
AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors

Chipsets
Chipset
AMD B450

Memory
Number of Memory Slots
4×288pin
Memory Standard
DDR4 4400(O.C.)/ 3533(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported
128GB
Channel Supported
Dual Channel

Expansion Slots
PCI Express 3.0 x16
3rd/2nd/1st Gen AMD Ryzen Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon with Radeon Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x4 mode)
PCI Express 2.0 x16
1 x PCIe 2.0 x16 (max at x4 mode) *
* PCIE x16_2 will be unavailable when installing M.2 PCIE SSD in M.2_2 socket.
* PCIe x16_2 will run x2 when installing devices in PCIe x1_1 or PCIe x1_2 slots.
* PCIE x16_2 will run x4 when no devices installing in PCIE x1_1 and PCIE x1_2 slots.
PCI Express x1
3 x PCI Express 2.0 x1 slots

Storage Devices
SATA 6Gb/s
3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors:
2 x SATA 6Gb/s port(s)
AMD B450 chipset:
4 x SATA 6Gb/s port(s)
M.2
3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)*
AMD Athlon with Radeon Vega Graphics Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*
AMD B450 chipset:
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)**

* The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
** PCIe x16_2, PCIe x1_1, and PCIe x1_2 slots will be unavailable when installing M.2 PCIe SSD in M.2_2 socket.
SATA RAID
0/1/10

Onboard Video
Onboard Video Chipset
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors
Multi-VGA output support: HDMI/DVI-D ports
– Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Onboard Audio
Audio Chipset
Realtek ALC S1200A
Audio Channels
8 Channels
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
