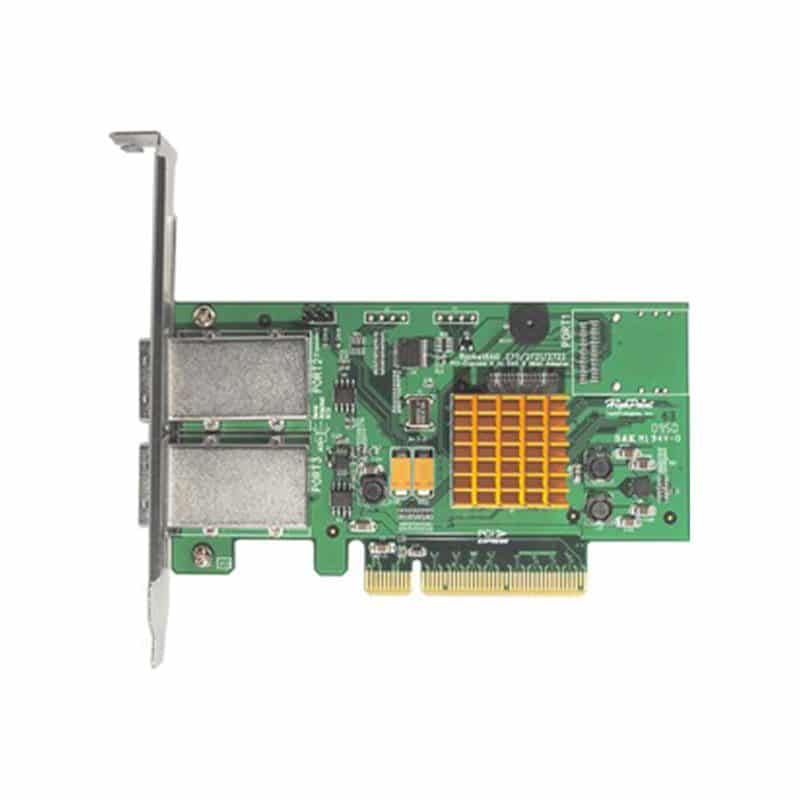

RR2722 HighPoint 2-Connector PCI-Express RAID Controller SAS/SATA

RR2722 Technical Specifications

HighPoint 2-Connector Mini-SAS PCI-Express RAID Controller 2.0 x8 SAS/SATA 6GB/s Interface

Manufacturer Part Number RR2722
Brand Name HighPoint
Product Type SAS Controller
Technical Information
Host Interface PCI Express 2.0 x8
Controller Type 6Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
5
6
10
50
JBOD
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
SAS Connector Details 2 SFF-8088
Physical Characteristics
Height 0.1″
Width 2.7″
Depth 4.7″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
Linux
Mac
Environmentally Friendly Yes
Environmental Certification RoHS
Country of Origin China
