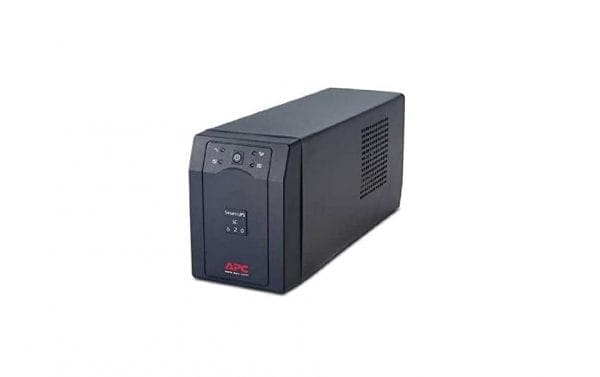

SC620 APC Smart-UPS SC 620VA 120V

SC620 Technical Specifications

APC Smart-UPS SC 620VA 120V

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :SC 620VA
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Interface Provided
Interfaces :1 x RS-232 – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Power cable – integrated – 6 ft, Serial cable
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Power Provided :390 watt
Power Capacity (VA) :620 volt ampere per kilogram
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-15
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :4
Surge Suppression :Yes
Surge Energy Rating :412 joules
Power Output Connectors Details
Power Output Connectors Details :4 x power NEMA 5-15
Dataline Surge Protection
Dataline Surge Protection :Ethernet 10/100Base-TX – RJ-45
Battery
Run Time (Up To) :5.5 minute (time unit)
Load Type :At full load
Run Time Details
Run Time (Up To) :5.5 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Gray
Color Category :Gray
Compliant Standards :FCC Class B certified, UL 1449, FCC Part 15, NOM, UL 1778, CSA
Features :Audible alarm
Dimensions & Weight
Width :4.7 inch
Depth :14.5 inch
Height :6.6 inch
Weight :27.12 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
