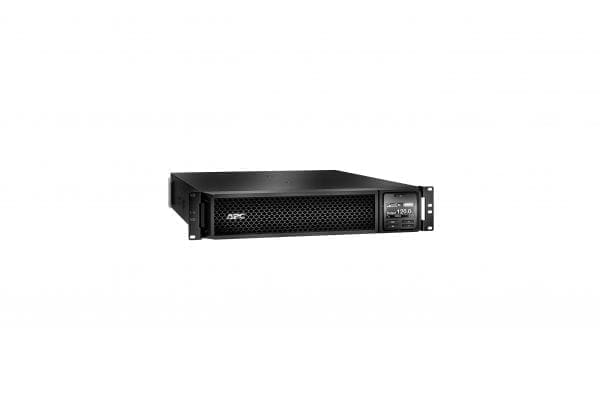

SRT2200RMXLAUS APC Smart-UPS SRT 1.8 kW 2200 VA

SRT2200RMXLAUS Technical Specifications

APC Smart-UPS SRT 1.8 kW 2200 VA

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :SRT2200RMXLAUS
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x serial – RJ-45, 1 x management (USB), 1 x EPO (emergency power off)
Power Device
Form Factor :External
UPS Technology :On-line
Voltage Provided :AC 120 volt
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :1.8 kilograms per millimetere
Power Capacity (VA) :2200 volt ampere per kilogram 2200VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 108 – 150 V
Frequency Required :40 – 70 hertz
Input Connector Type :Power NEMA L5-20P
Input Connector Qty :1
Output Connector Qty :7
Surge Suppression :Yes
Power Device Features :LCD display, Internal bypass, Audible alarm, Emergency power off
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-20R, 1 x power NEMA L5-20
Battery
Run Time (Up To) :3.3 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Maintenance free, Sealed, Leak-proof
Run Time Details
Run Time (Up To) :10.3 min at half load, 3.3 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Compliant Standards :OSHPD, CSA C22.2 No. 107.3, FCC Part 15 A, UL 1778
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :3.3 inch
Depth :23 inch
Height :17 inch
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :31.9 inch
Shipping Height :9.7 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
