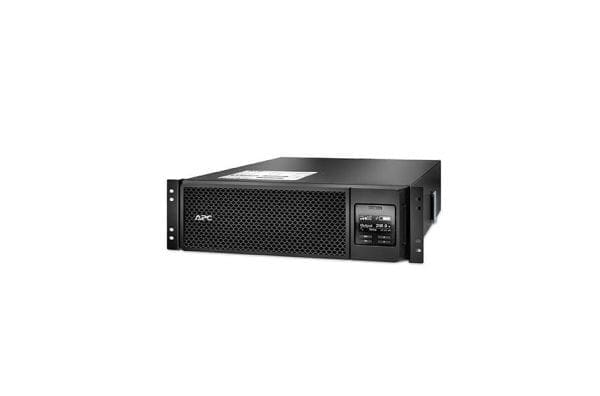

SRT5KRMXLTUS APC Smart-UPS SRT Essential Series UPS 4250 Watt
SRT5KRMXLTUS Overview
The APC SRT Smart-UPS is an efficient network power protection product ideal for supporting servers, point-of-sale devices, routers, switches, hubs and other network devices. This TAA complaint Smart-UPS offers double-conversion on-line power protection with scalable runtime. With an output power capacity of 5 kVA, this rack-mountable UPS ensures reliable power back up. Its intuitive, easy to use backlight LCD provides clear and accurate information with ability to configure locally.
$6,472
SRT5KRMXLTUS Technical Specifications
APC Smart-UPS SRT Essential Series UPS 4250 Watt 5000 VA
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :SRT5KRMXLTUS
Edition :Essential Series
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, Ethernet 10/100, Serial
Remote Management Protocol :SNMP, HTTP, Modbus, Telnet
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Fast Ethernet) – RJ-45, 1 x EPO (emergency power off), 1 x management (USB), 1 x serial – RJ-45
Cable Details
Cables Included :Power cable
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 208 volt
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3%
UPS Output Waveform :Sinewave
Power Provided :4250 watt
Power Capacity (VA) :5000 volt ampere per kilogram 5000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Power NEMA L6-30P
Input Connector Qty :1
Output Connector Type :2 x power NEMA L6-20R, 2 x power NEMA L6-30R
Output Connector Qty :4
Surge Suppression :Yes
Efficiency :97%
Power Device Features :Audible alarm, Energy meter, Double conversion, LCD display
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA L6-30R, 2 x power NEMA L6-20R
Battery
Run Time (Up To) :4.4 minute (time unit)
Load Type :At full load
Lead Acid Battery Features :Sealed, Leak-proof, Maintenance free
Run Time Details
Run Time (Up To) :12.6 min at half load, 4.4 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
TAA Compliant :Yes
Height (Rack Units) :3
Rack Size :19″
Rack Size (metric) :48.3 cm
Compliant Standards :NOM, CSA C22.2 No. 107.3, FCC Part 15 A, UL 1778, OSHPD
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :28.3 inch
Height :5.1 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
