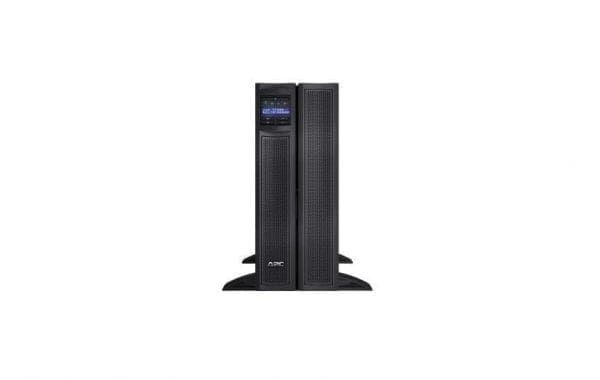

SMX2KRMLVNCUS APC Smart-UPS X 2000VA Rack/Tower LCD

SMX2KRMLVNCUS Technical Specifications

APC Smart-UPS X 2000VA Rack/Tower LCD 100-127V UPS with NC – TAA Compliant

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X
Model :SMX2KRMLVNCUS
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, RS-232, Ethernet 10/100
Remote Management Protocol :SSH, SNMP 2c, SNMP 3, SNMP 1, Telnet, HTTPS
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB), 2 x monitoring, 2 x USB – 4 pin USB Type A, 1 x management (Fast Ethernet) – RJ-45, 1 x management (RS-232) – RJ-45
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :1.8 kilograms per millimetere
Power Capacity (VA) :1920 volt ampere per kilogram 1920VA
2000VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 70 – 153 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-30
Input Connector Qty :1
Output Connector Qty :7
Power Device Features :Audible alarm, Automatic Voltage Regulation (AVR), LCD display, Hot-swappable batteries
Power Output Connectors Details
Power Output Connectors Details :1 x power NEMA L5-20, 3 x power NEMA 5-15R, 3 x power NEMA 5-20R
Battery
Run Time (Up To) :11 minute (time unit)
Load Type :At full load
Lead Acid Battery Features :Maintenance free, Sealed, Leak-proof
Run Time Details
Run Time (Up To) :11 min at full load, 27.6 min at half load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
TAA Compliant :Yes
Compliant Standards :UL 1778, EN55022 Class A, NOM, FCC Part 15 A, TUV, CSA, VCCI Class A, EN 50091-2, BSMI
Environmental Standards
ENERGY STAR :Yes
