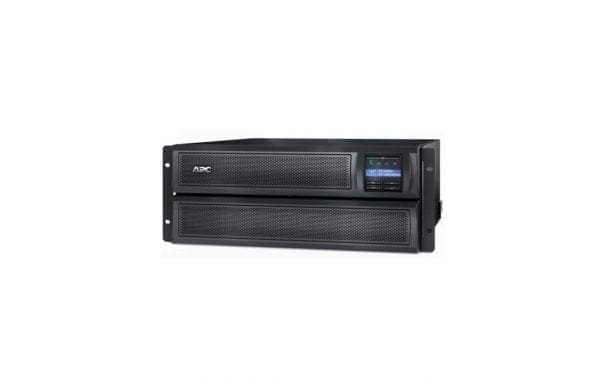

SMX2000LVUS APC Smart-UPS X 2000VA SD Rack/Tower Conversion

SMX2000LVUS Technical Specifications

APC Smart-UPS X 2000VA SD Rack/Tower Conversion LCD UP TAA Compliant

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X
Model :SMX2000LVUS
Packaged Quantity :1
2000VA
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB)
Cable Details
Cables Included :USB cable – external, Power cable 8 ft
Power Device
Form Factor :Rack-mountable / external
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :1.8 kilograms per millimetere
Power Capacity (VA) :1920 volt ampere per kilogram 1920VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 70 – 153 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-20P
Input Connector Qty :1
Output Connector Qty :10
Surge Suppression :Yes
Switchover Time :4 millisecond
Surge Energy Rating :540 joules
Power Device Features :Emergency power off, LCD display, Audible alarm, Hot-swappable batteries, Automatic Voltage Regulation (AVR)
Power Output Connectors Details
Power Output Connectors Details :1 x power NEMA L5-20, 6 x power NEMA 5-15R, 3 x power NEMA 5-20R
Battery
Run Time (Up To) :11 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Maintenance free, Sealed, Leak-proof
Run Time Details
Run Time (Up To) :11 min at full load, 27.6 min at half load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Tower stand
TAA Compliant :Yes
Rack Mounting Kit :Included
Height (Rack Units) :4
Equipment Protection Value :150000 US Dollars
Compliant Standards :FCC Part 15 A, EN 50091-2, CSA, REACH, UL 1778, EN55022 Class A, VCCI Class A, NOM, RoHS, TUV, BSMI, UL 1449
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :7 inch
Depth :19 inch
Height :17 inch
Weight :85.19 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.1 inch
Shipping Depth :24.9 inch
Shipping Height :13 inch
Shipping Weight :105.23 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
