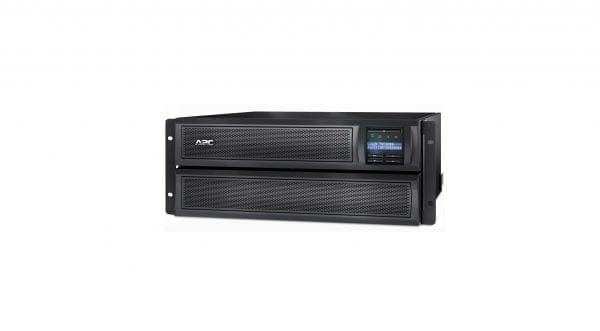

SMX3000HVTUS APC Smart-UPS X 3kVA SD Rack/Tower Conversion
SMX3000HVTUS Overview
The APC SMX Smart-UPS offers protection to servers, routers, switches and networking devices from spikes and surges. It acts as a back-up power solution in the event of power cuts and shutdowns. This convertible extended run model, with a power capacity of 3 kVA, is designed to provide back-up power to critical servers and voice/data switches. With Automatic Voltage Regulation, it adjusts high and low voltages to a safe level, ensuring your equipment has reliable power, and preserving the life of the battery.
$2,517
SMX3000HVTUS Technical Specifications
APC Smart-UPS X 3kVA SD Rack/Tower Conversion LCD 208V UPS – TAA Compliant
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X
Model :SMX3000HVTUS
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB)
Cable Details
Cables Included :USB cable – external
Power Device
Form Factor :Rack-mountable / external
UPS Technology :Line interactive
Voltage Provided :AC 208 volt
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :2700 watt
Power Capacity (VA) :3000 volt ampere per kilogram 3000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 141 – 255 / 160 – 280 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA L6-20P
Input Connector Qty :1
Output Connector Qty :11
Surge Suppression :Yes
Surge Energy Rating :645 joules
Power Device Features :Hot-swappable batteries, Automatic Voltage Regulation (AVR), Emergency power off, Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :3 x IEC jumper, 4 x power IEC 60320 C13, 2 x power NEMA L6-20R, 2 x power IEC 60320 C19
Battery
Run Time (Up To) :6.3 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Maintenance free, Sealed, Leak-proof
Run Time Details
Run Time (Up To) :6.3 min at full load, 18 min at half load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
TAA Compliant :Yes
Rack Mounting Kit :Included
Height (Rack Units) :4
Compliant Standards :UL 1449, C-Tick, EN 50091-2, GOST, FCC Part 15 A, UL 1778, RoHS, CSA, EN 60950, IRAM, REACH, EN 50091-1, VDE
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :7 inch
Depth :19 inch
Height :17 inch
Weight :85.19 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.1 inch
Shipping Depth :24.9 inch
Shipping Height :13 inch
Shipping Weight :105.23 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 decibel
