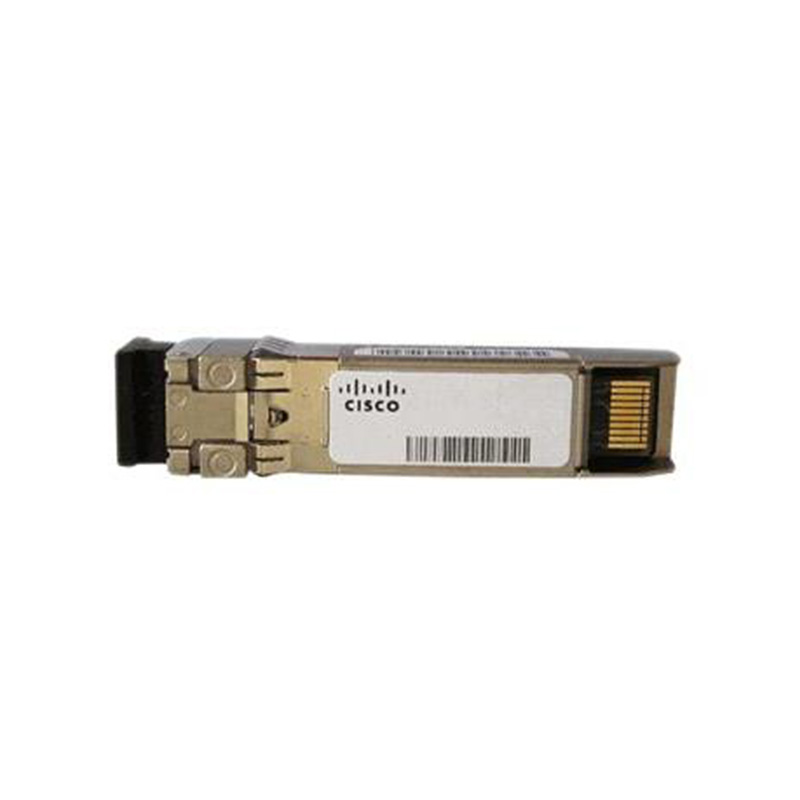

SFP-10G-LR10-I Cisco 10Gbps 10GBase-LR Single-mode SFP Transceiver Module
SFP-10G-LR10-I Overview
The Cisco SFP-10G-LR10-I is an industrial-grade 10Gbps optical transceiver designed for long-range Ethernet and CPRI applications over single-mode fiber. Operating at 1310nm, it supports distances up to 10 kilometers, making it ideal for mobile fronthaul, midhaul, and telecom backhaul networks. Its LC duplex interface ensures secure and reliable connections, while the extended industrial temperature range enables dependable performance in harsh environments. Built for high availability and low latency, this SFP+ module is well-suited for demanding enterprise, service provider, and outdoor networking deployments.
SFP-10G-LR10-I Technical Specifications
Cisco 10Gbps 10GBase-LR Single-mode Fiber 10km 1310nm Duplex LC Connector CPRI Industrial Temp SFP Transceiver Module
Manufacturer: Cisco
Manufacture Part Number: SFP-10G-LR10-I
Product Type: Industrial-Grade SFP Optical Transceiver Module
Data Rate: 10Gbps
Transmission Standard: 10GBase-LR
Wavelength: 1310nm
Maximum Distance: Up to 10km
Fiber Type: Single-Mode Fiber (SMF)
Connector Type: LC Duplex
Special Feature: CPRI (Common Public Radio Interface) support for telecom applications
Operating Temperature: Industrial grade (-40°C to 85°C)
Form Factor: SFP+ (Small Form-factor Pluggable Plus)
Hot-Pluggable: Yes
Power Consumption: Low-power design
Applications: Telecom backhaul, industrial networking, mobile fronthaul/midhaul, data centers
Compliance: IEEE 802.3ae, SFP+ MSA, CPRI standards, RoHS
