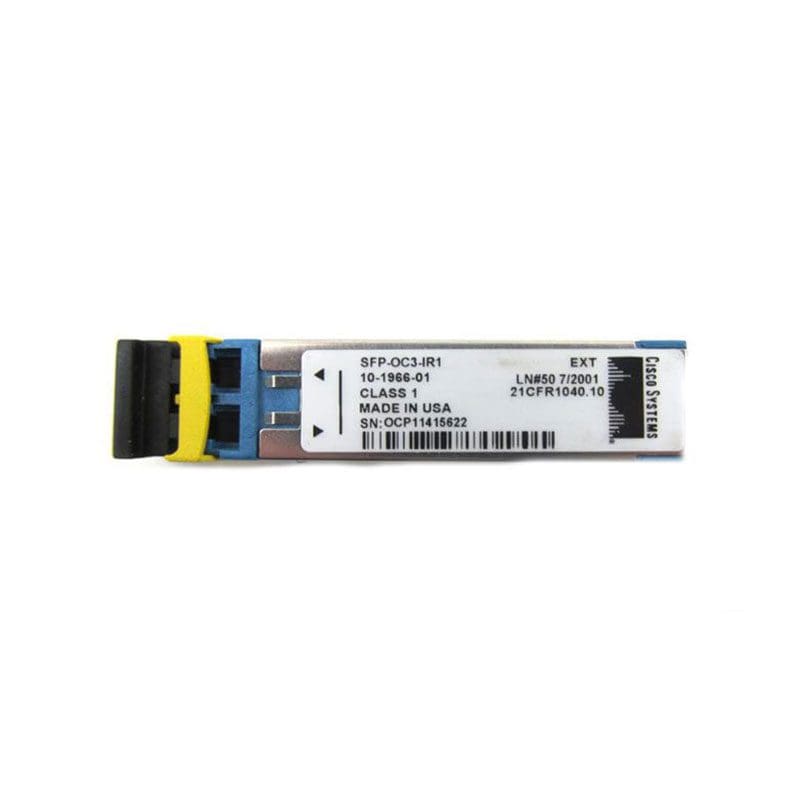

SFP-OC3-IR1 Cisco OC3/STM1 SFP Single-Mode Fiber Transceiver

SFP-OC3-IR1 Technical Specifications

Cisco OC3/STM1 SFP Single-Mode Fiber Intermediate Reach Transceiver Module

General Information:
Manufacturer Cisco Systems, Inc
Manufacturer Part Number SFP-OC3-IR1
Brand Name Cisco
Product Name OC-3/STM-1 Intermediate-Reach SFP Transceiver Module
Product Type SFP
Cisco Transceiver
Technical Information
Application/Usage Data Networking
Interfaces/Ports
Interfaces/Ports Details 1 x LC Duplex OC-3/STM-1
Media & Performance
Media Type Supported Fiber Channel
Fiber Mode Supported Single-mode Fiber (SMF)
Maximum Data Transfer Rate 155 Mbit/s
Miscellaneous
Additional Information-
1310-nm wavelength
Typical Distance 15km
Compatibility-
Cisco 3800 Series Integrated Services Router
Cisco Shared Port Adapter (SPA) SPA-2XOC3-POS
Cisco Shared Port Adapter (SPA) SPA-4XOC3-POS
Cisco Shared Port Adapter (SPA) SPA-2XOC3-ATM
Cisco Shared Port Adapter (SPA) SPA-4XOC3-ATM
Port Adapters (PA) PA-POS-1OC3
Port Adapters (PA) PA-POS-2OC3
