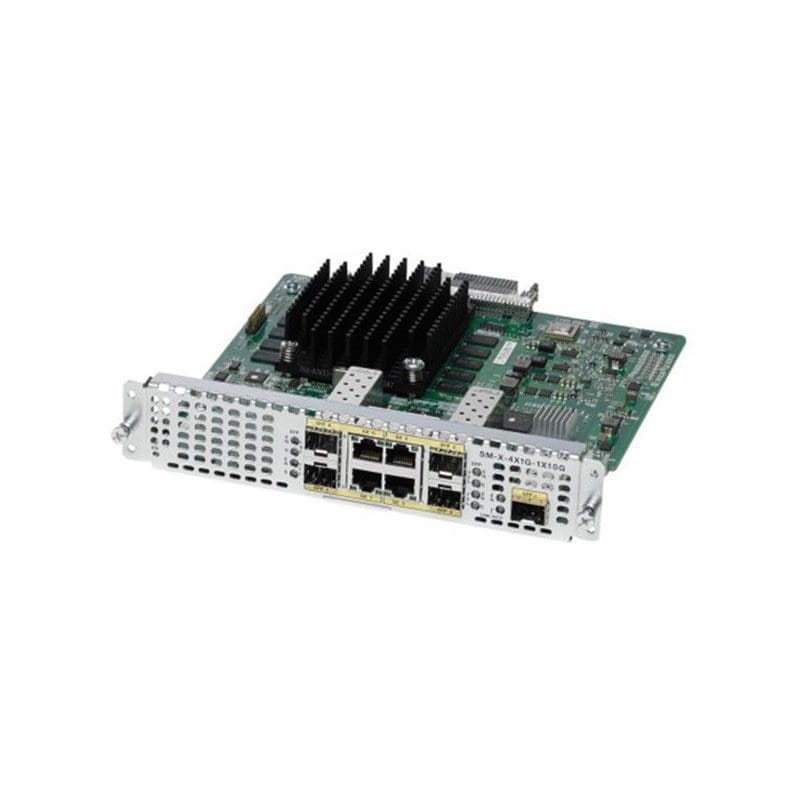

SM-X-4X1G-1X10G Cisco 4-Port High-Density Gigabit
SM-X-4X1G-1X10G Overview
Cisco Gigabit Ethernet WAN Modules bring high-density Small Form-Factor Pluggable (SFP) and copper (RJ-45) 1 Gigabit and 10 Gigabit Ethernet (GE) connectivity to the Cisco 4000 Series Integrated Services Routers (ISRs). Providing maximum flexibility, the modules accelerate applications such as Ethernet WAN access, inter-VLAN routing, and high-speed connectivity to LAN switches and servers
$6,765
SM-X-4X1G-1X10G Technical Specifications
Cisco 4-Port High-Density Gigabit
Ports
Qty :4
Type :Combo Gigabit SFP
Ports (2nd)
Qty :1
Type :10 Gigabit SFP+
Interface Provided
Connector Type :RJ-45 Connector
Qty :4
Type :1000Base-T
Connector Type :SFP (mini-GBIC)
Type :1000Base-X
Connector Type :SFP+
Qty :1
Type :10GBase-X
Networking
Cabling Type :Ethernet 1000Base-T, Ethernet 1000Base-X, Ethernet 10GBase-X
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, Gigabit Ethernet
Form Factor :Plug-in module
Interface Type :Enhanced service module (SM-X)
Type :Expansion module
Environmental Parameters
Humidity Range Operating :5 – 95%
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Systems
Model :4-Port High-Density Gigabit or 1-Port 10 Gigabit Ethernet WAN Service Module
Packaged Quantity :1
Product Line :Cisco
