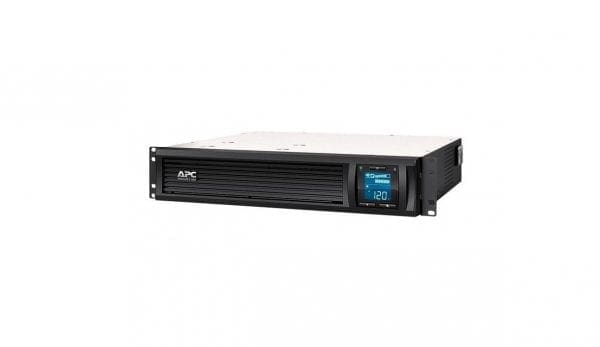

SMC1000-2UC APC Smart-UPS C 1000VA LCD RM 2U 120V

SMC1000-2UC Technical Specifications

APC Smart-UPS C 1000VA LCD RM 2U 120V with SmartConnect

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS C
Model :SMC1000-2UC
Bundled with :APC SmartConnect
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Serial, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x serial – RJ-45, 1 x management (USB) – 4 pin USB Type B
Cable Details
Cables Included :Power cable – integrated – 8 ft, USB cable – external
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :600 watt
Power Capacity (VA) :1000 volt ampere per kilogram
Voltage Required :AC 120 volt
Input Voltage Range :AC 93 – 130 V
Input Voltage Range (Adjustable) :AC 85 – 136 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-15P
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :6
Surge Suppression :Yes
Surge Energy Rating :680 joules
Circuit Protection :Circuit breaker
Power Device Features :Automatic Voltage Regulation (AVR), Automatic self-test, Hot-swappable batteries, Cold-start function, Audible alarm, LCD display, Automatic shut down reset
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15 – 120 V
Battery
Run Time (Up To) :9.2 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Maintenance free
Run Time Details
Run Time (Up To) :9.2 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Equipment Protection Value :150000 US Dollars
Compliant Standards :RoHS, ICES-003, FCC Part 15 Class B, CSA, UL 1778, CSA C22.2 No. 107.1
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :16 inch
Height :3.4 inch
Weight :45.24 lbs
Dimensions & Weight (Shipping)
Shipping Width :21.1 inch
Shipping Depth :22.4 inch
Shipping Height :9.3 inch
Shipping Weight :45.66 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :41 dBA
